Audirect - Beam 2 MQA Portable DAC & Amp

• Sporting a SingleESS9281C PRO chip which features Hyperstream II QUAD DAC, allowing the left and right channel to operate independently.
• Dual OP- AMP configuration ensures a True Balanced design with high output to drive the most power-hungry earphones and headphones (upto 600ohm).

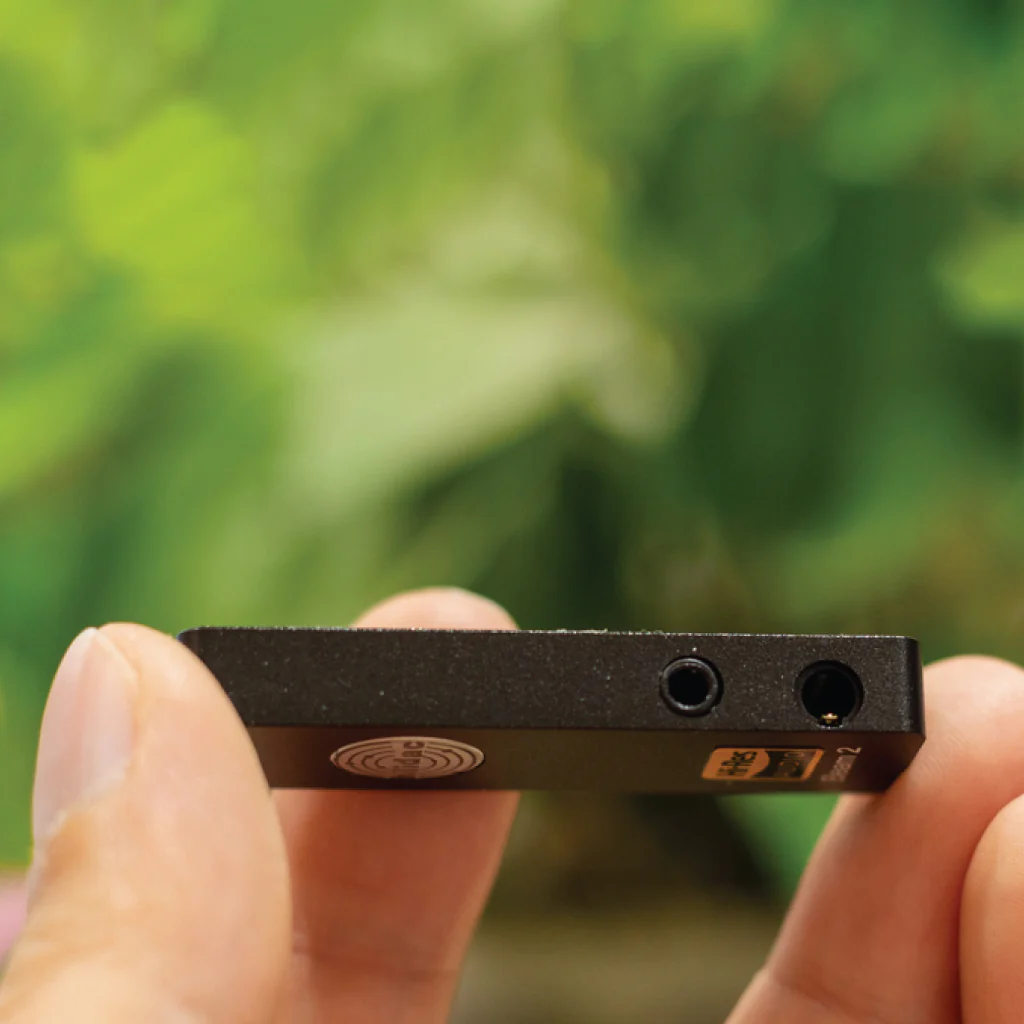

• Beam2 comes with a 3.5mm single-ended and 2.5mm balanced headphone port. The 2.5mm headphone port is fully balanced. The left and right channels have independent op amps and high thrust circuit designs.
• The light on the body changes color according to the decoded music format: Red is SD audio format, blue is HD master audio format, rose red is MQA master audio format.
• Support ordinary lossless audio output PCM encoding 32Bit / 384kHz, meanwhile support DSD encoded audio, decoder 64/128 (DOP).



PRODUCT PARAMETERS:

Single-ended output power: ≥180mW (16Ω) ≥110mW (32Ω) ≥6.6mW (600Ω)
Balanced output power: ≥145mW (16Ω) ≥240mW (32Ω) ≥26.6mW (600Ω)
Frequency response range: 20Hz-40kHz (-0.04dB)
THD + N: 0.0003%
Signal to noise ratio: ≥118dB SNR
Maximum supported sampling rate: PCM / DXD (up to 32Bit, 384kHz)
Support DSD specification: up to DSD128 (DOP)
Internal resistance: <1Ω
Rendering: supporting full decoding of original MQA files
Op amp: Independent dual op amp chip
Input interface: TYPE-C
Output port: 3.5MM / 2.5MM
Body: 49 * 15 * 6.8mm

PACKAGE INCLUDES:

• Audirect Beam 2
• Lightning to TYPE-C short cable
• TYPE-C to TYPE-C short cable
• TYPE-C short data cable
