TempoTec - Sonata BHD Balanced DAC & Amp

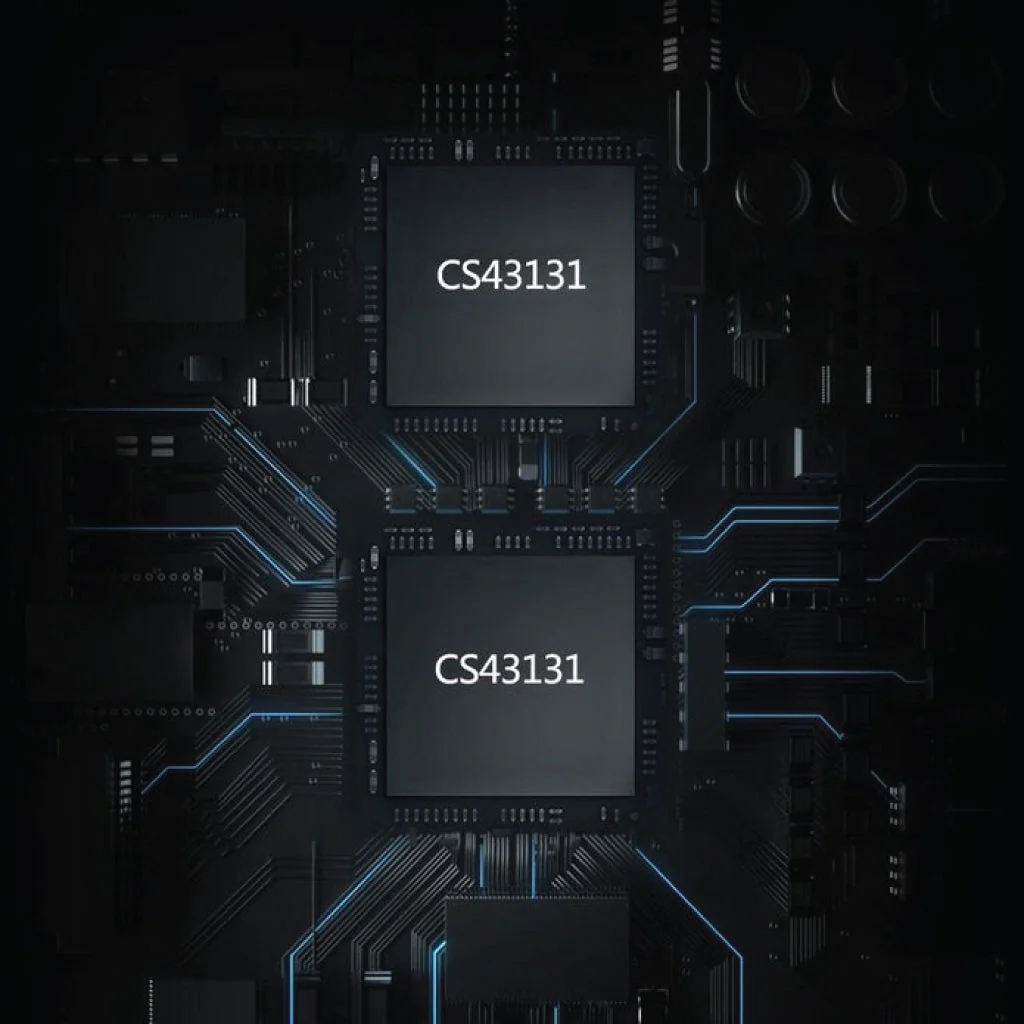

DUAL CS43131 DECODING CHIP: Two CIRRUS LOGIC low-power high-resolution decoding chips. SNR: 129dB, THD+N: -113dB, HP Out: 120MW/32ohms 20MW/600ohms.

PURE HARWARE VOLUME CONTROL: Different from the design of most mini portable headphone amplifier and DAC. Sonata BHD provides PREAMP pure hardware volume control which is independent of the volume control by software on the mobile phone. Realize the hardware decoding of DSD audio source.

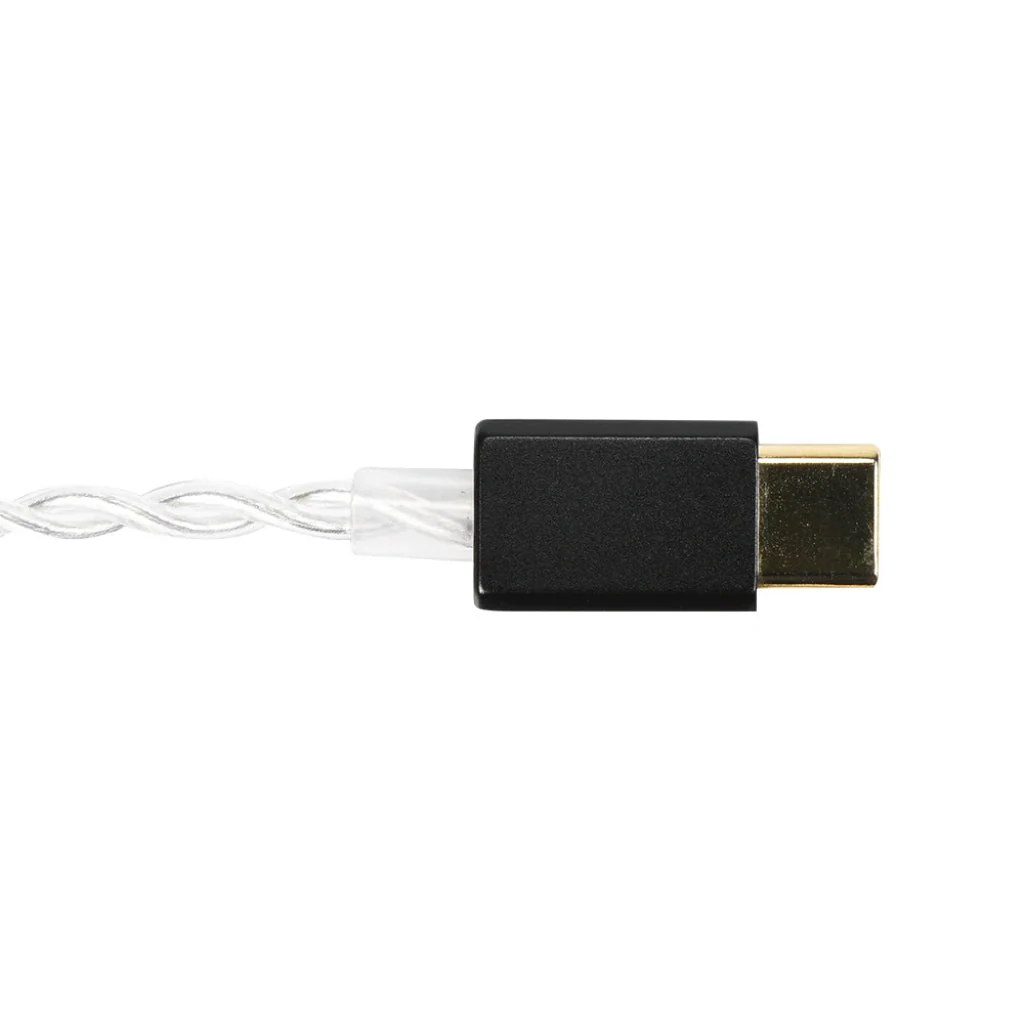

SINGLE CRYSTAL COPPER SILVER PLATED WIRE: Excellent workmanship, JUST to hear the real sound. In order to fully improve the transferring accuracy of the digital signal, Sonata BHD uses a customized gold-plated TYPE C connector

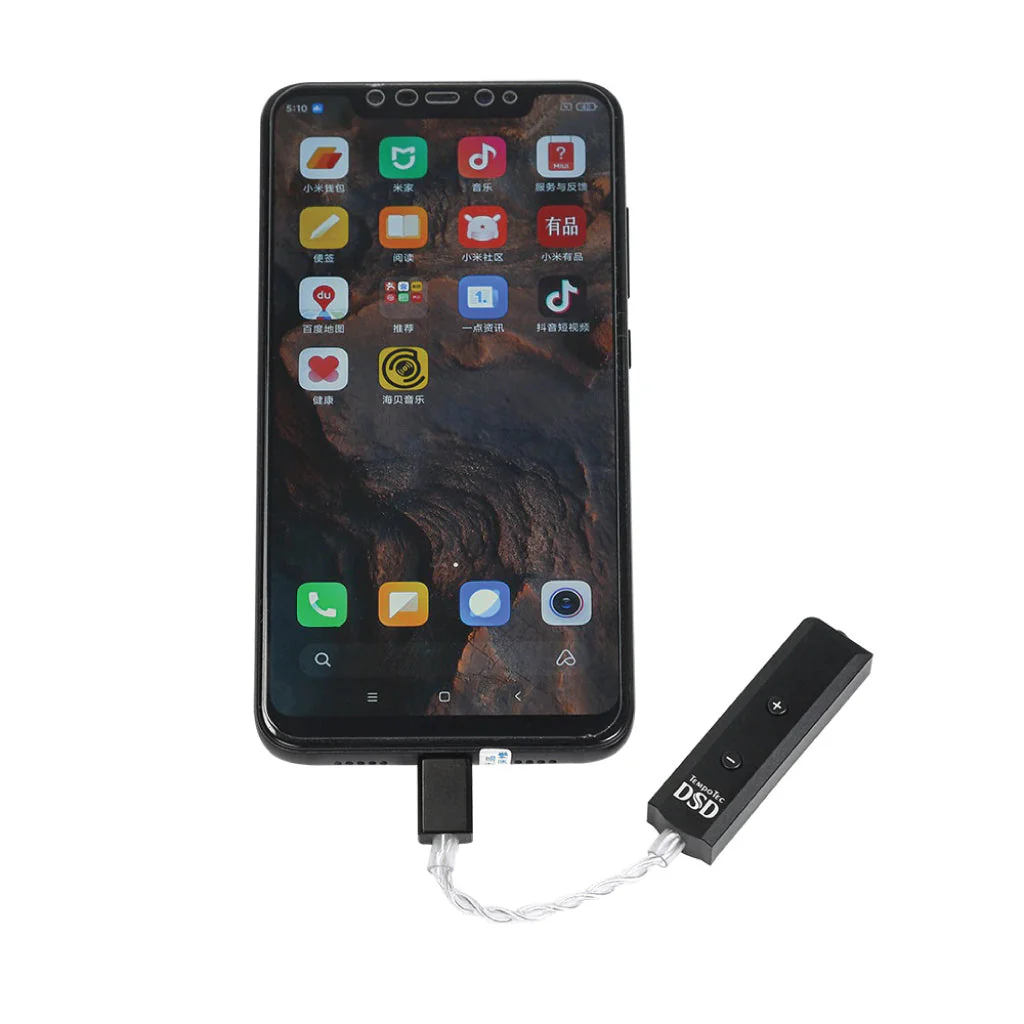

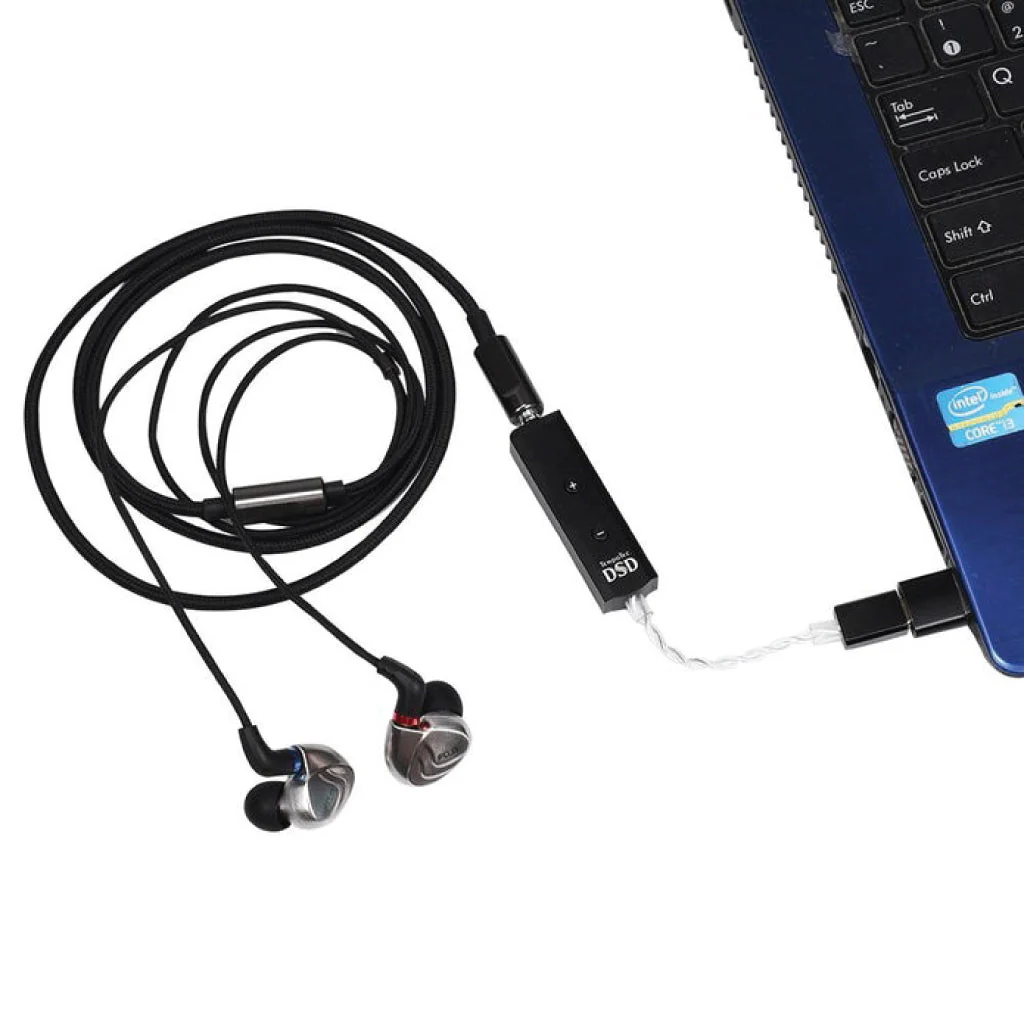

SUPPORT MULTIPLE SYSTEMS: Sonata BHD can not only support various types of Android phones with TYPE C interface, but also support PC. Please make sure that you have turned the “OTG function" and “USB debugging mode” on of your android phone. Please find these two switches under “developer options” on your phone first.

INSTRUCTIONS:

1. Sonata BHD can be compatible with most of the Android phones which has TYPE C interface on the market. Please make sure that you have turned the “OTG function" and “USB debugging mode” on of your android phone. Please find these two switches under “developer options” on your phone first.
2. Sonata BHD is a plug-and-play device on the Apple computer system, please select it as the default audio output device in the "MIDI device" after connecting the product
3. Sonata BHD can work directly on windows system which is latter than WINDOWS 10 (version 1.073) without installing any USB audio driver. But if your operating system us Windows 7 or Windows 8, you have to install our professional USB audio driver to enjoy music, especial DSD music. (It is strongly recommended that you install our ASIO driver to feel every detail of the music)

Specification:

Brand Name: Tempotec

Model Name: Sonata BHD

Level: 2VRMS

Crosstalk: greater than 118dB (32 ohms)

PCM: up to 32bit/384kHz

DSD: to DSD256 (NATIVE) DSD128 (DOP)

HIBY Music APP: Support exclusive

PC: Exclusive ASIO driver

Volume control: independent hardware volume control

PACKAGE INCLUDE:

1* Sonata BHD

1* Adapter (female type-c to male USB-A)

1* Leather Case for Sonata BHD
