Tiandirenhe - ES Pro ES9318C DAC Dongle

Features:

• Onboard digital audio decoding chip supports up to PCM 32bit / 384KHz
• Onboard audio decoding chip support DSD 64/128 audio source hard decoding (DoP mode)
• Onboard 600Ω dynamic adaptive chip, can work with 16 ~ 600Ω headphones

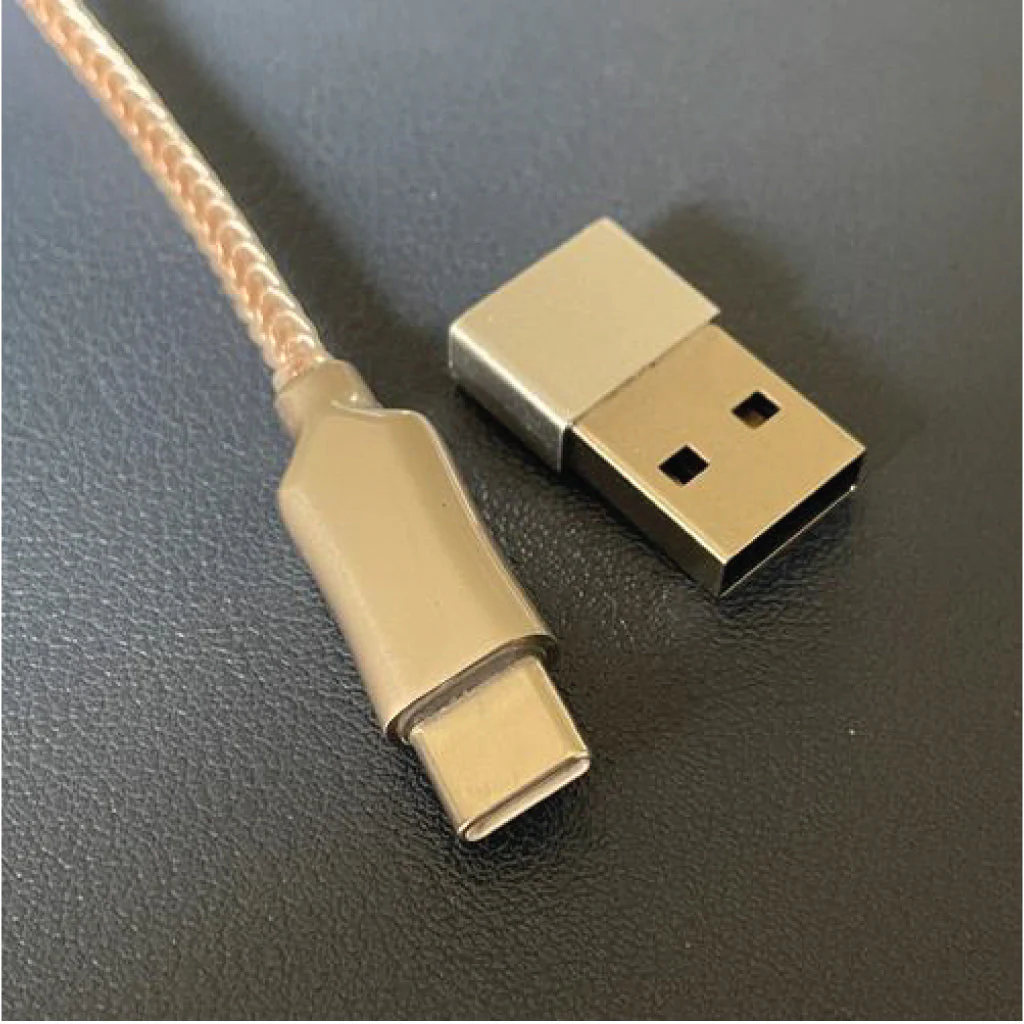

• Convert Type-C interface to Android mobile phone, tablet, Windows 10 PC to 3.5mm headphone jack (without USB Type-C device support audio output function) With optional USB A-USB Type C adapter, it will work as an external high-end USB audio card for Windows 10 PC (does not support Windows 7 or earlier)

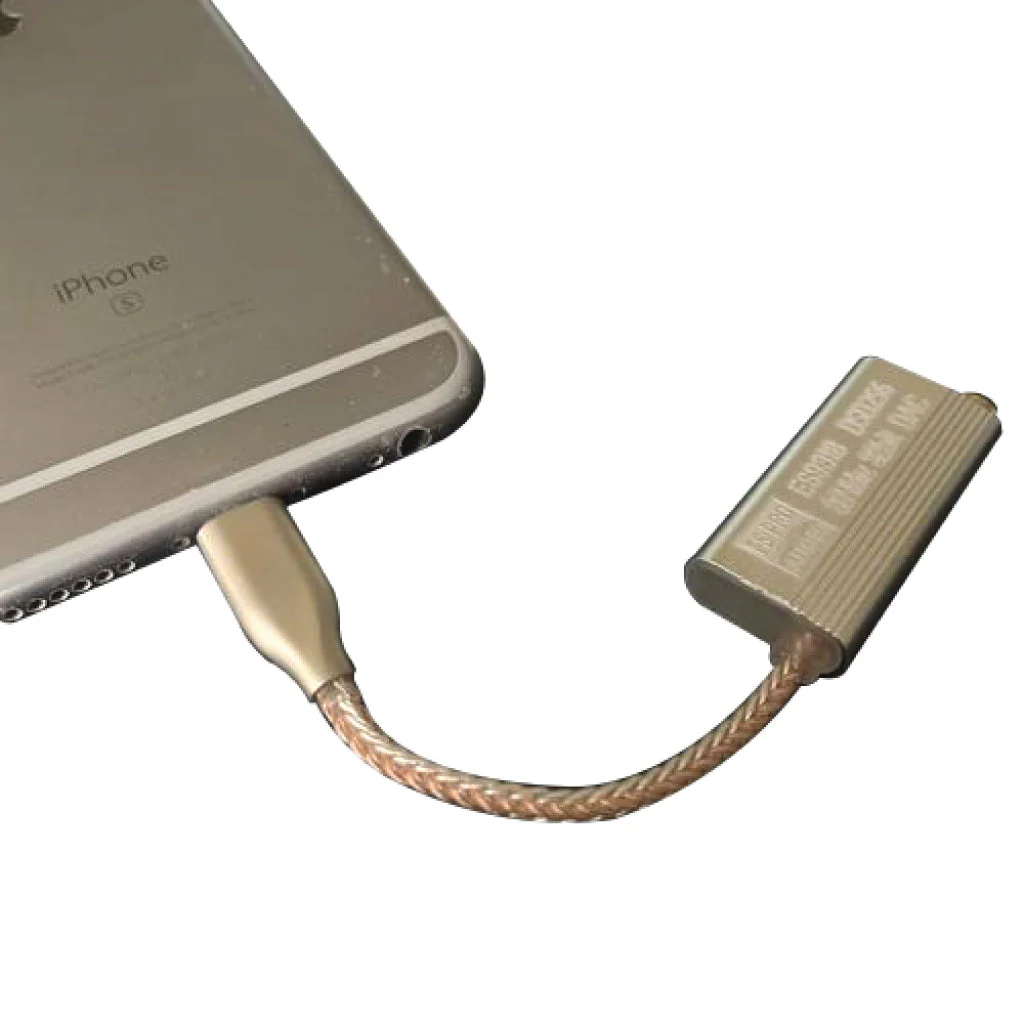

• Convert 8 Pin lighting interface to IOS Mobile Phone, iPad to 3.5mm headphone jack.

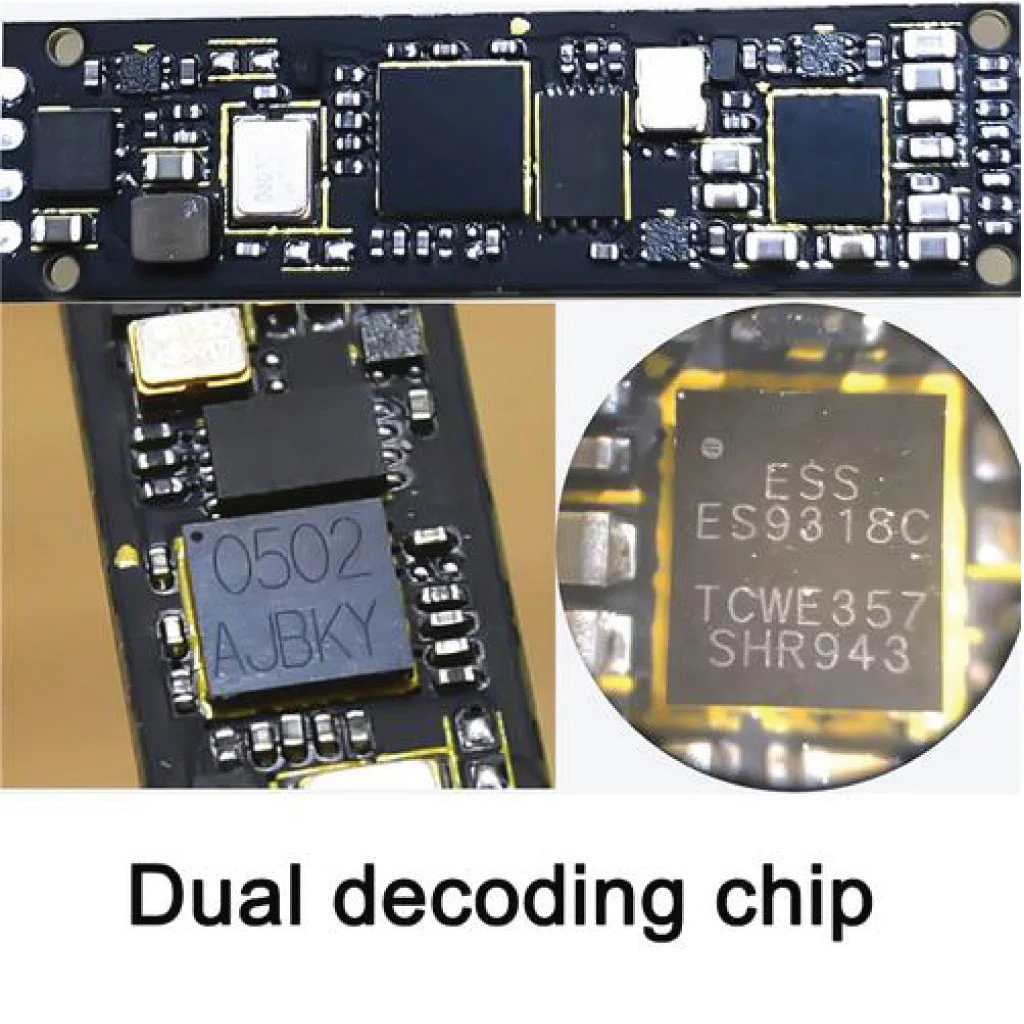

• ES9318c is advanced. It is a stereo 32bit independent DAC chip that supports DSD hardware solution. Compared to other common DAC CHIPS, better materials are used. It provides 130dB S / N ratio, 124dB dynamic range and lower-112dB total harmonic distortion + noise. At the same time, es9318 shares the flagship HyperStreamlI ESS technology.
• It has an independent DAC and integrates a high impedance amplifier, which can provide up to
• 2Vrms (5.6Vpp) output voltage, easy to drive high impedance headphone
• Compatibility: for Google Pixel 2, for Google Pixel 2 XL, for Google Pixel 3 and 3 XL,for Google Pixel 4 , for Samsung S8, S9, S10, S20, for Samsung Galaxy Note 10, for Samsung Galaxy Note 10+, Note 20, Galaxy Fold, Z Fold, Fold 2 , for Oneplus 6T,7,7 pro, 8, 8 Pro , for Motorola Moto Z, Moto Z 2 , for Huawei Mate 10/20/30 Pro, for Huawei Mate RS, for Huawei 20/P30, P30 Pro, P40, P40 Pro, Mate X, Xs , Essential Phone , for Xiaomi 6/8/10 , for iPad Pro 2018/2019/2020 , more USB Type C devices , OS: Windows, Linux, Andriod, iOS (need Type-C female to for Apple interface OTG adapter) , Power Consumption: 23mA-33mA,Av28mA
• Support auto-detect and auto-swich between CTIA and OMTP-style headsets.
• PCM decoding output, built-in hifi power amplifier, 600 ohm high resistance ,



Specifications:

1.Model No: ES-Pro Audio ES9318 DAC

2.PCM: 32bit – 384khz

3.DSD: 256

4.SNR: -130dB

5.Output Power: 70mW @ 32ohm

6.Support Impedance: 16-600 ohm

7.Microphone: Not Supported

8.Signal to noise ratio: 120DB

9.DNR: 120DB

10.Output Power: 25mW

11.Response range: 20Hz-20kHz

12.Decoding ability: PCM up to 32Bt/384 KHZ

13.Type-c to 3.5mm: ALC 5686 chip ordinary

14.ESS 9318 chip .: TYPE-C DAC

15.Color: Silver

16.Material: Metal

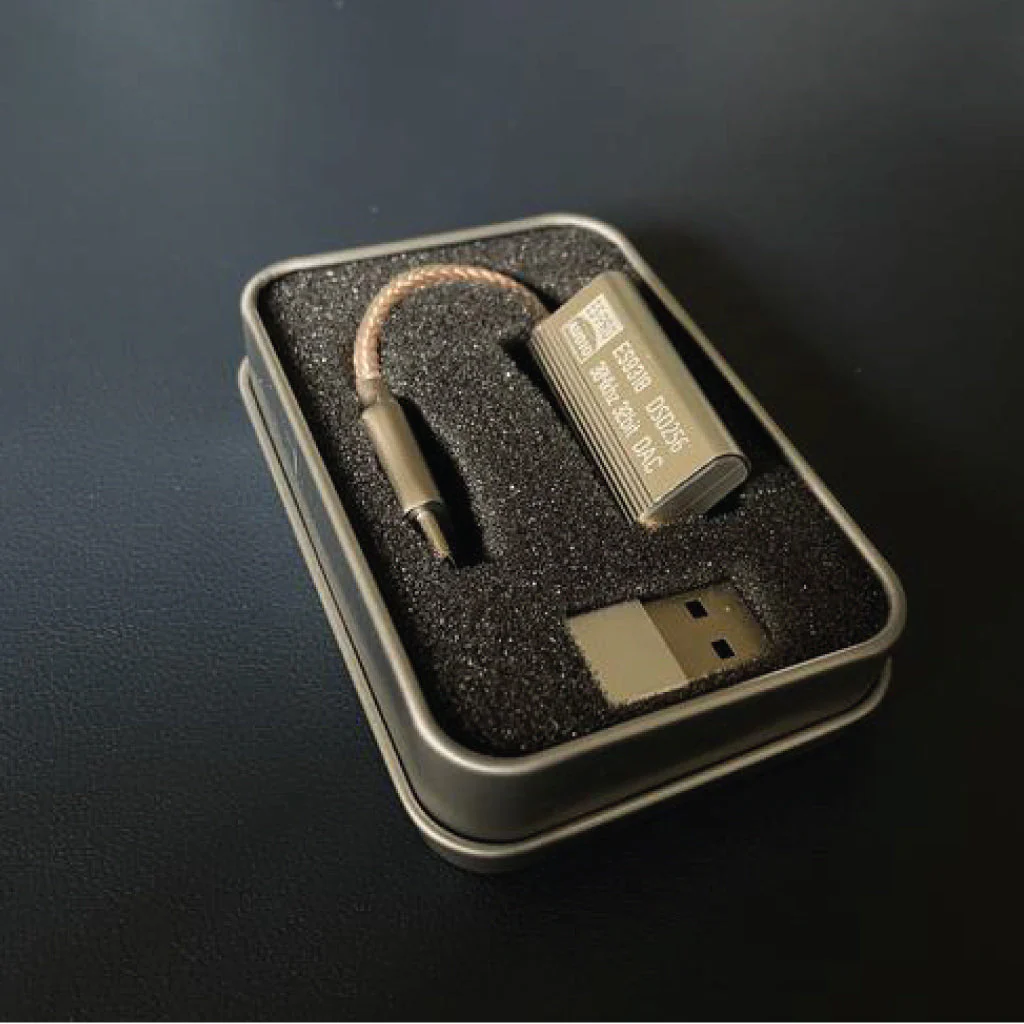

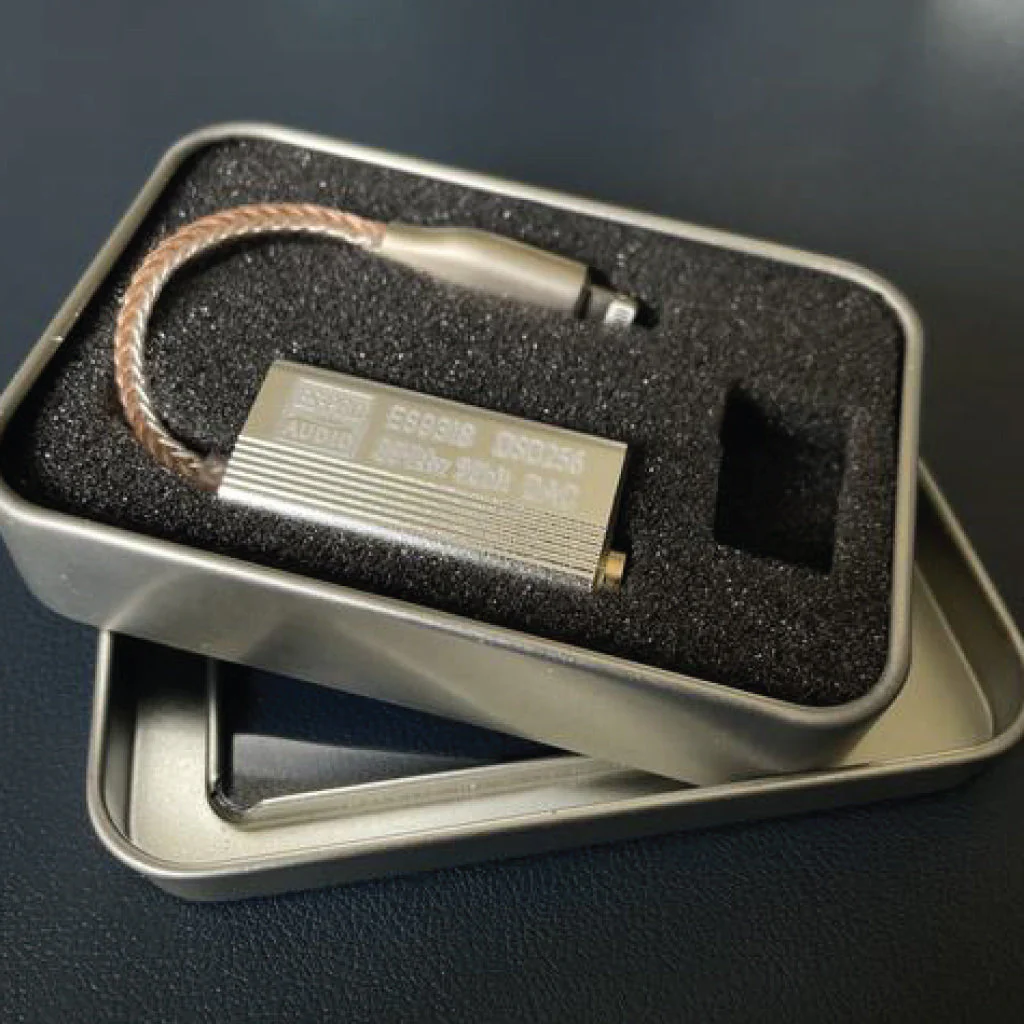

Package Content:

• 1*ES9318 DAC Type-C With USB OR 1*ES9318 DAC Lighting
