MOONDROP - Dawn Mini DAC & Amp

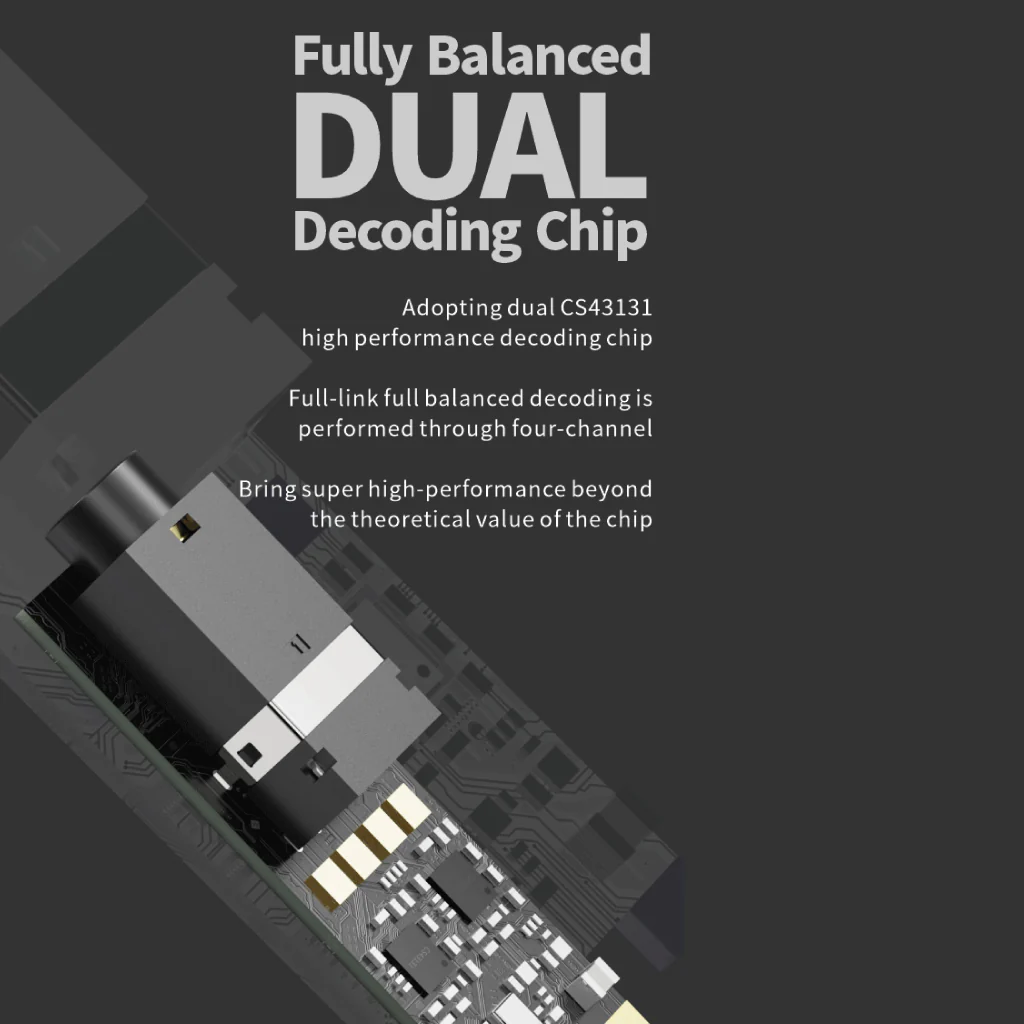

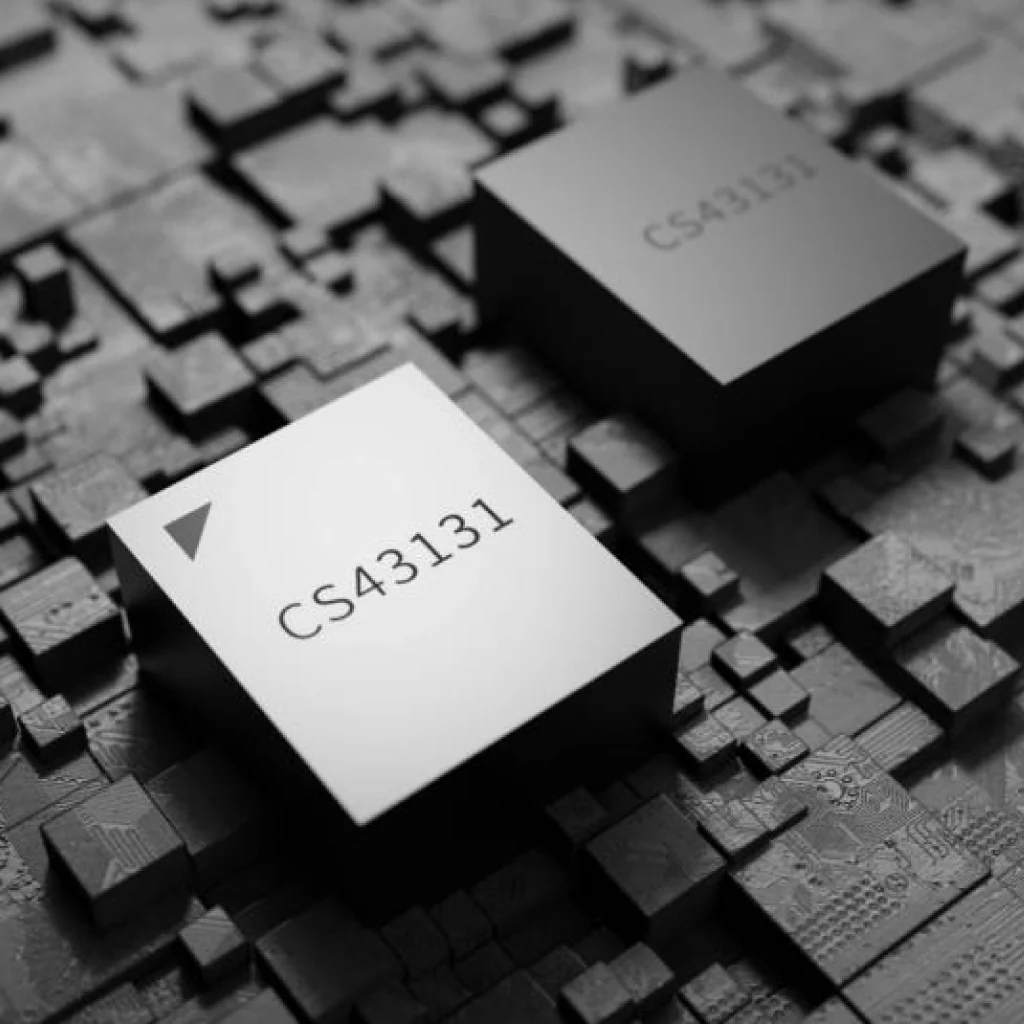

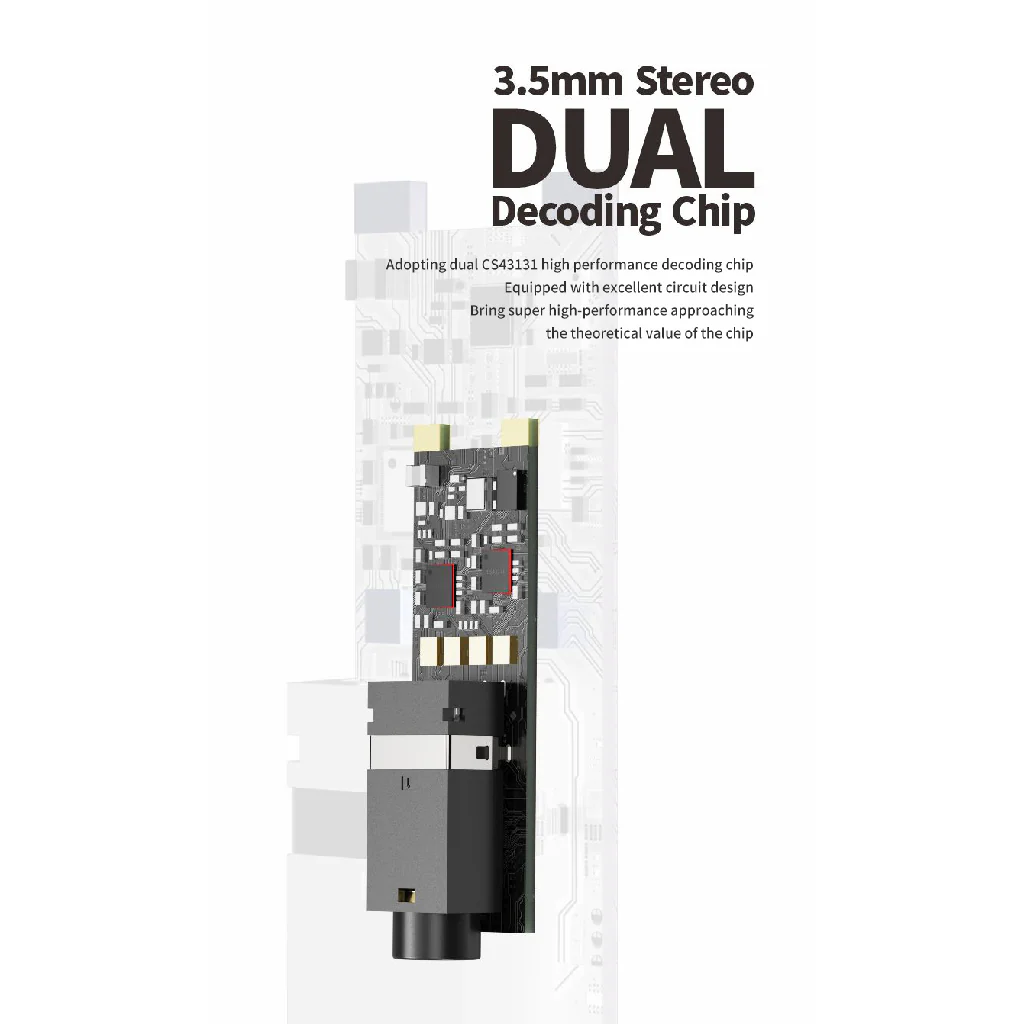

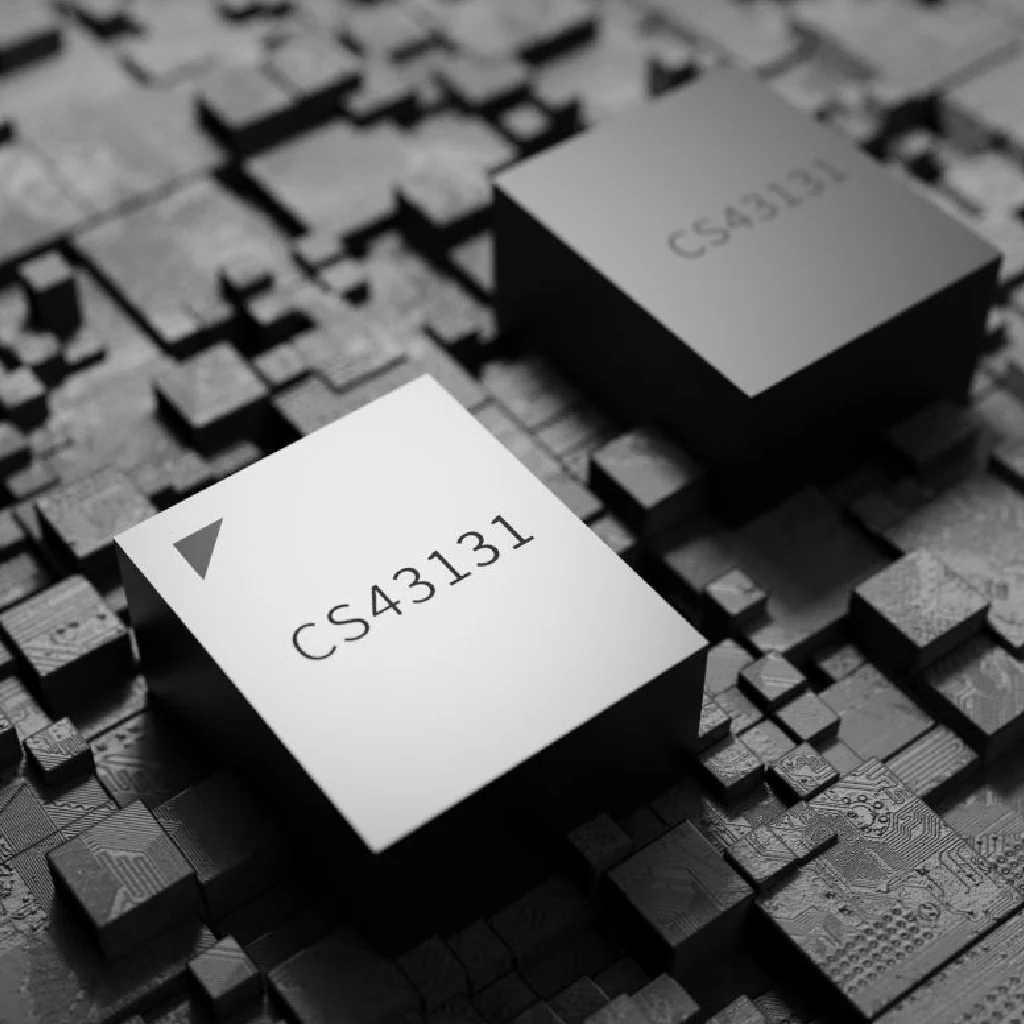

HIGH-PERFORMANCE DUAL CS43131 DAC CHIPS: Dawn uses dual CS43131 DAC chips, each providing better decoding performance and high resolution. The SNR is up to 132Db dynamic range and DSD256 to ensure a clean and clear sound. With most earphones, you don't have to worry about the existence of background noise. And the decoding chip, amp, and digital receiving chip are all powered separately to further reduce distortion and floor noise of the output.

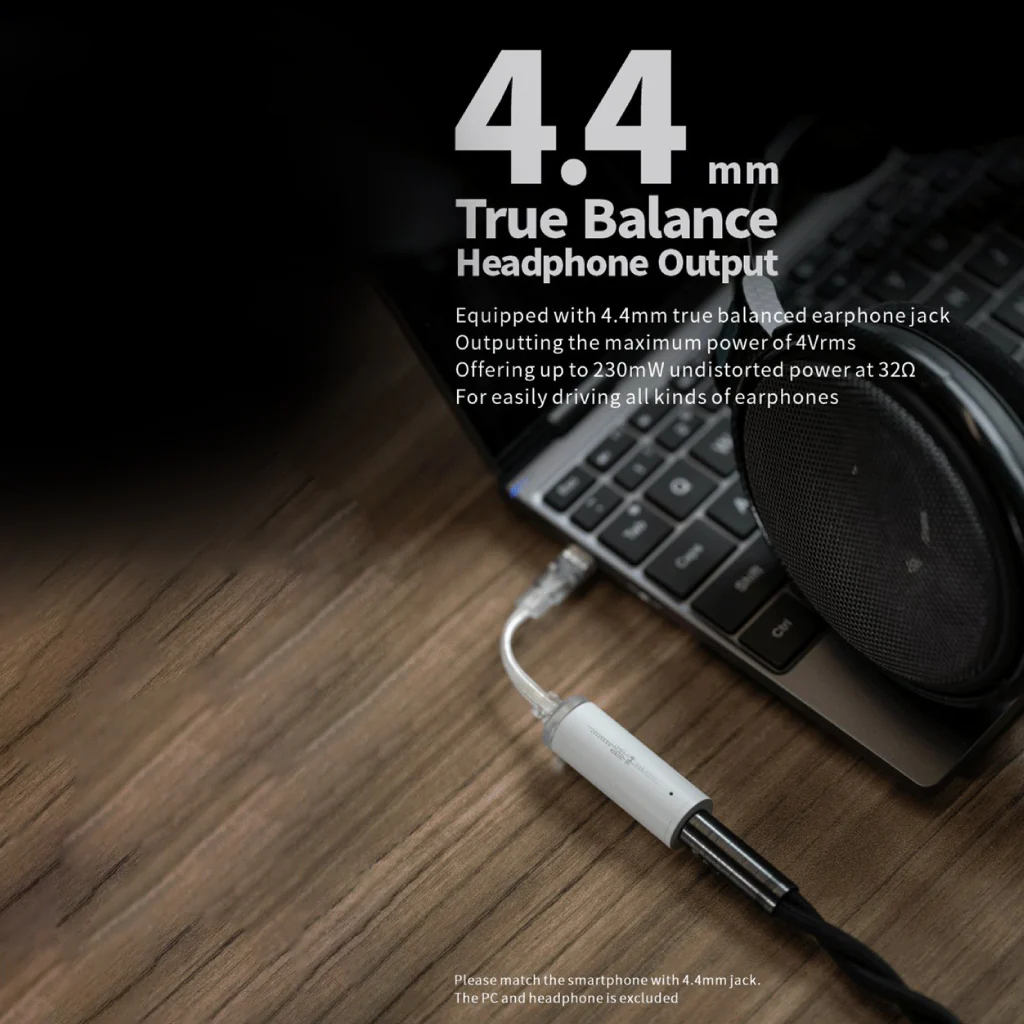

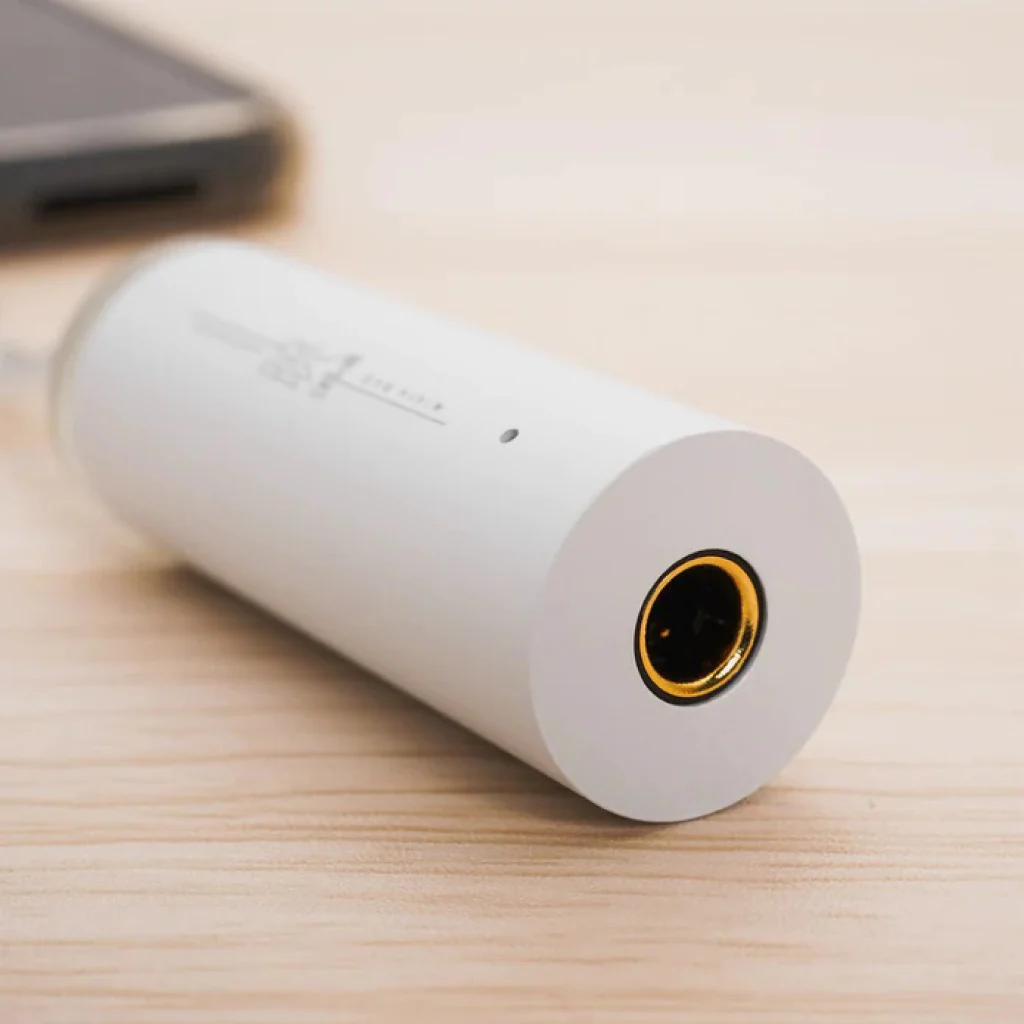

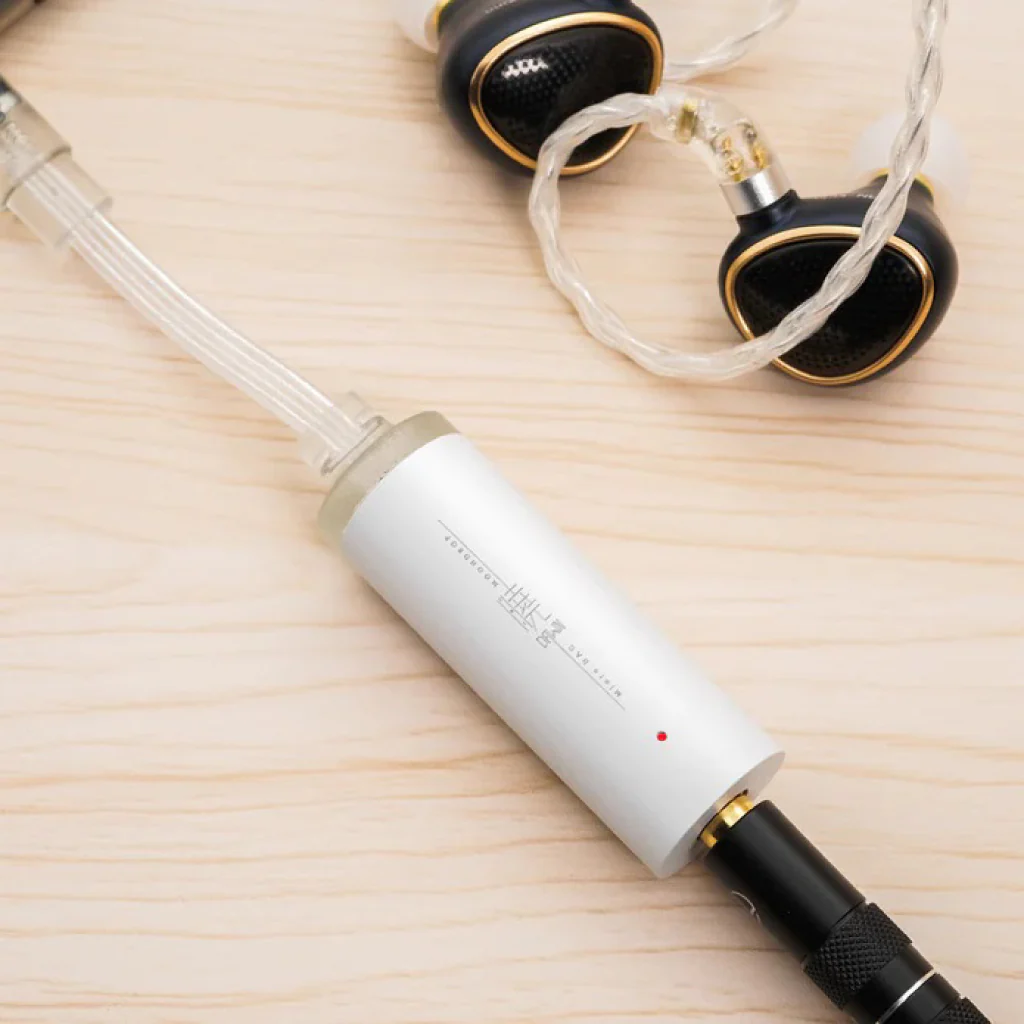

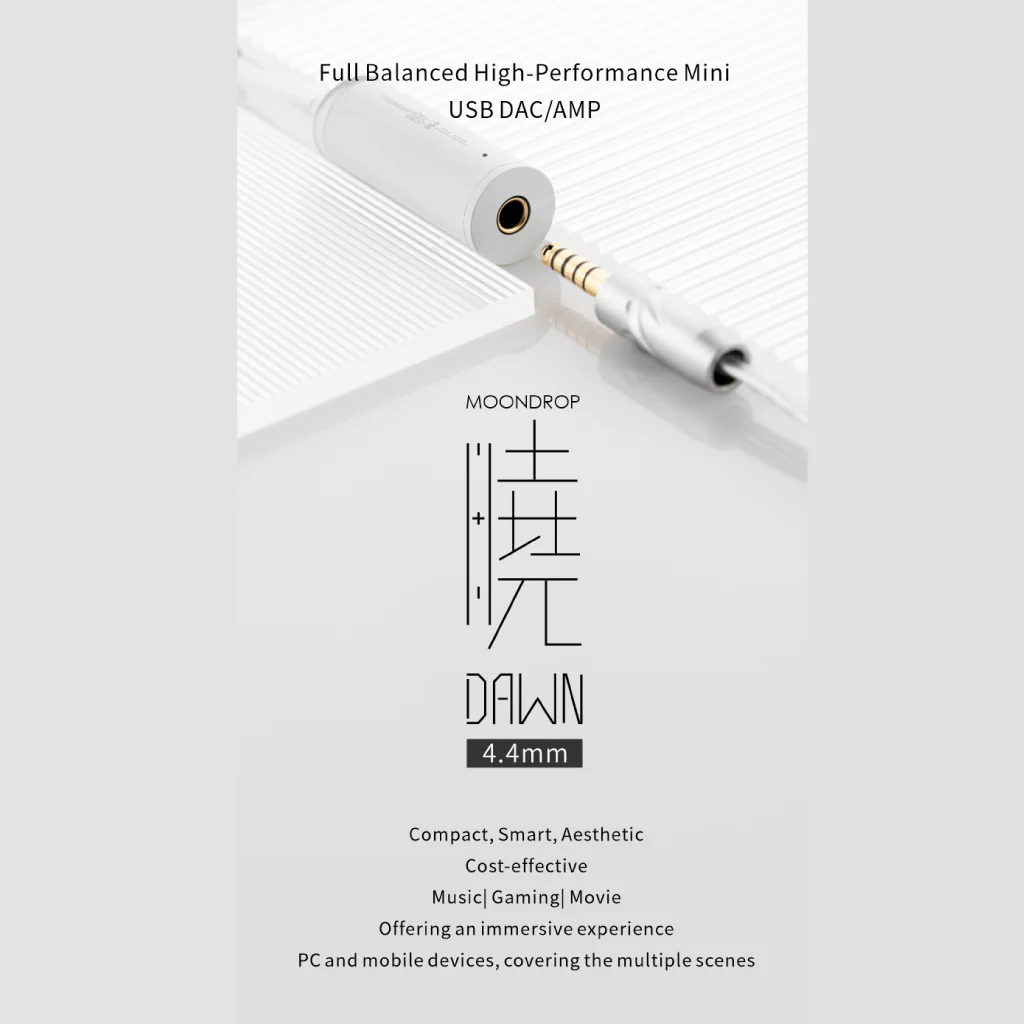

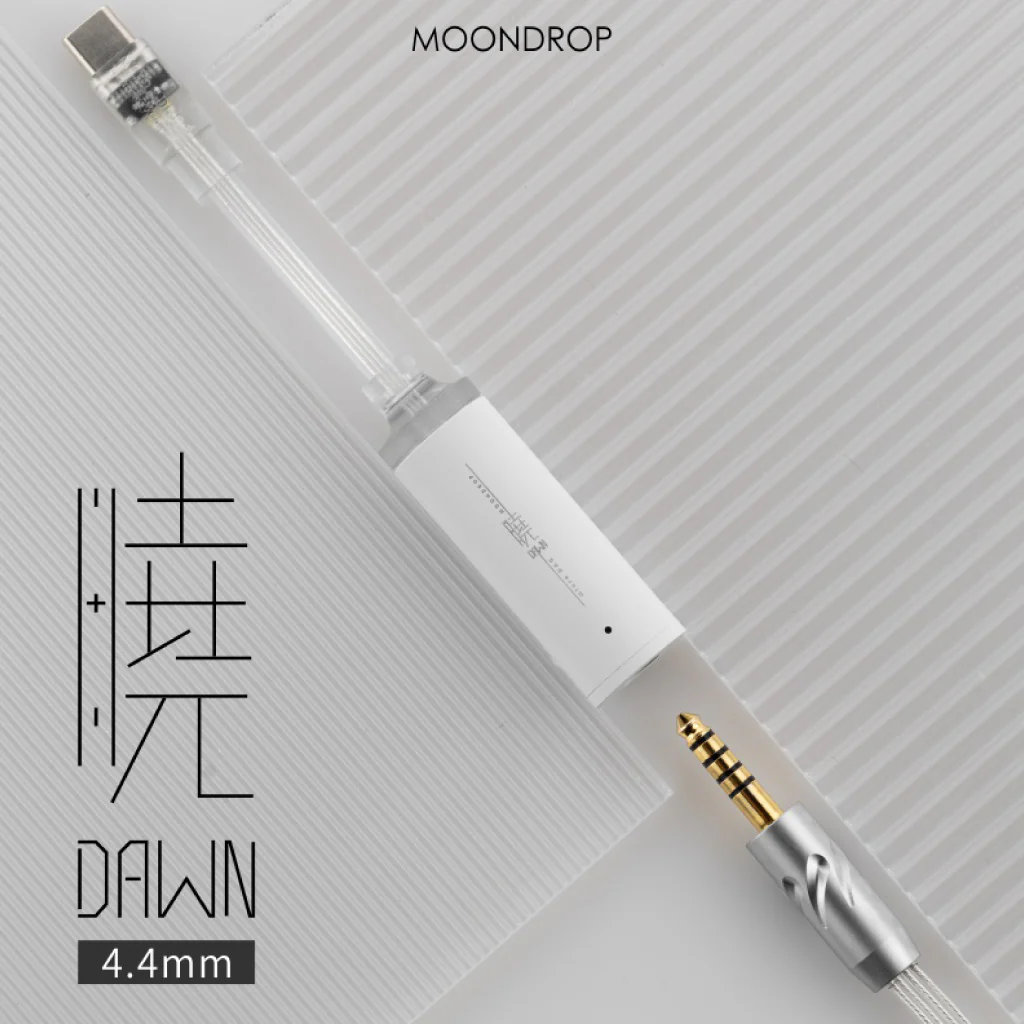

USBC TO 3.5MM /4.4MM MINI DAC/AMP: The Moondrop DAWN packs a powerful performance with its 3.5mm/4.4mm fully balanced headphone output port. The maximum line-out power of up to 4Vrms and about 230mW undistorted power @ 32Ω of load. It is ideal for most IEMs and some low-power headphones out there because it delivers such a powerful output.

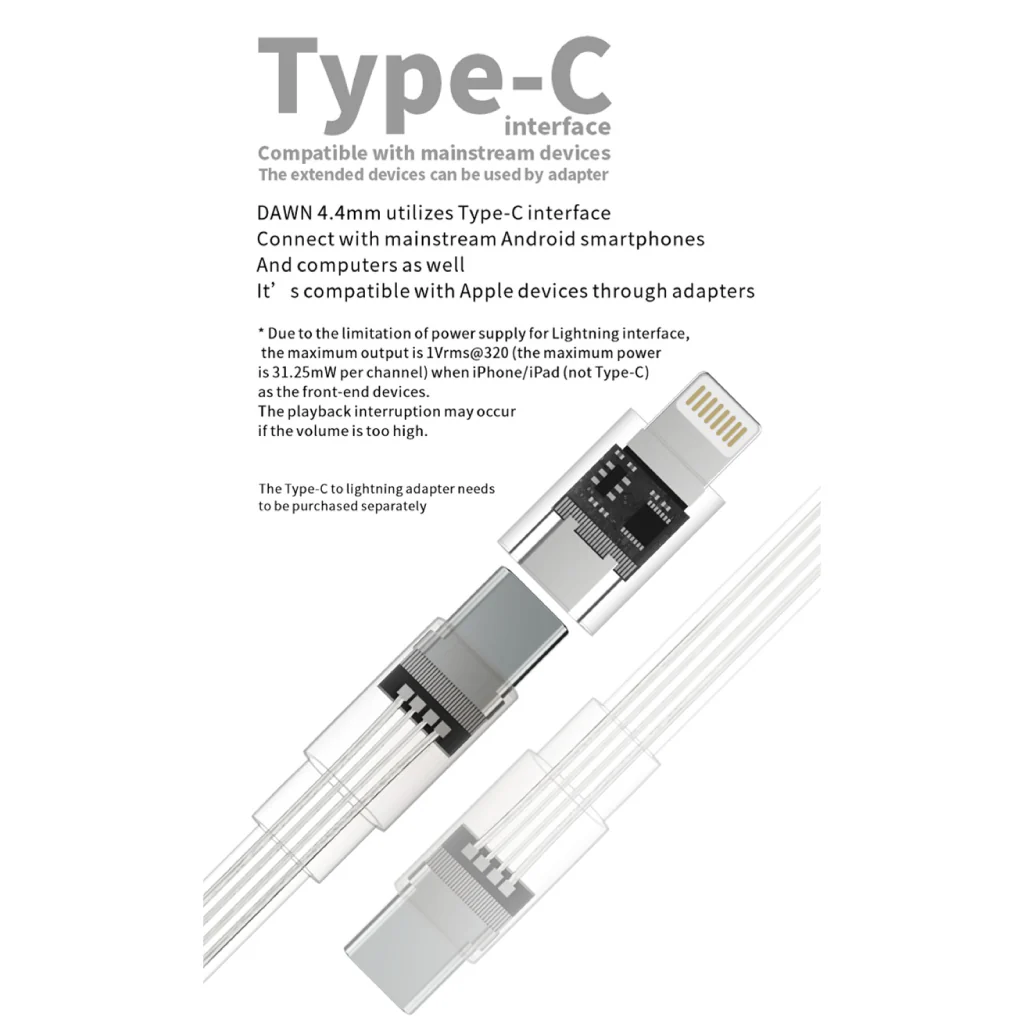

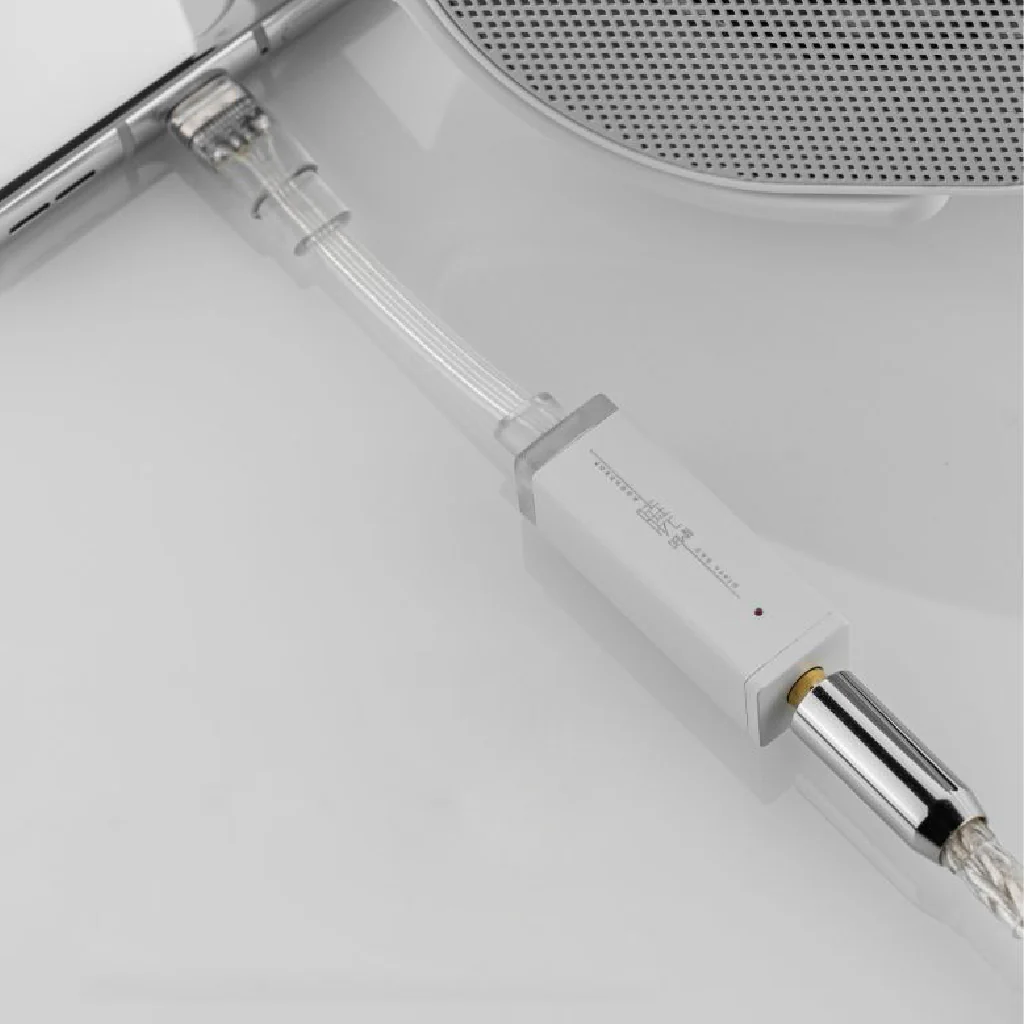

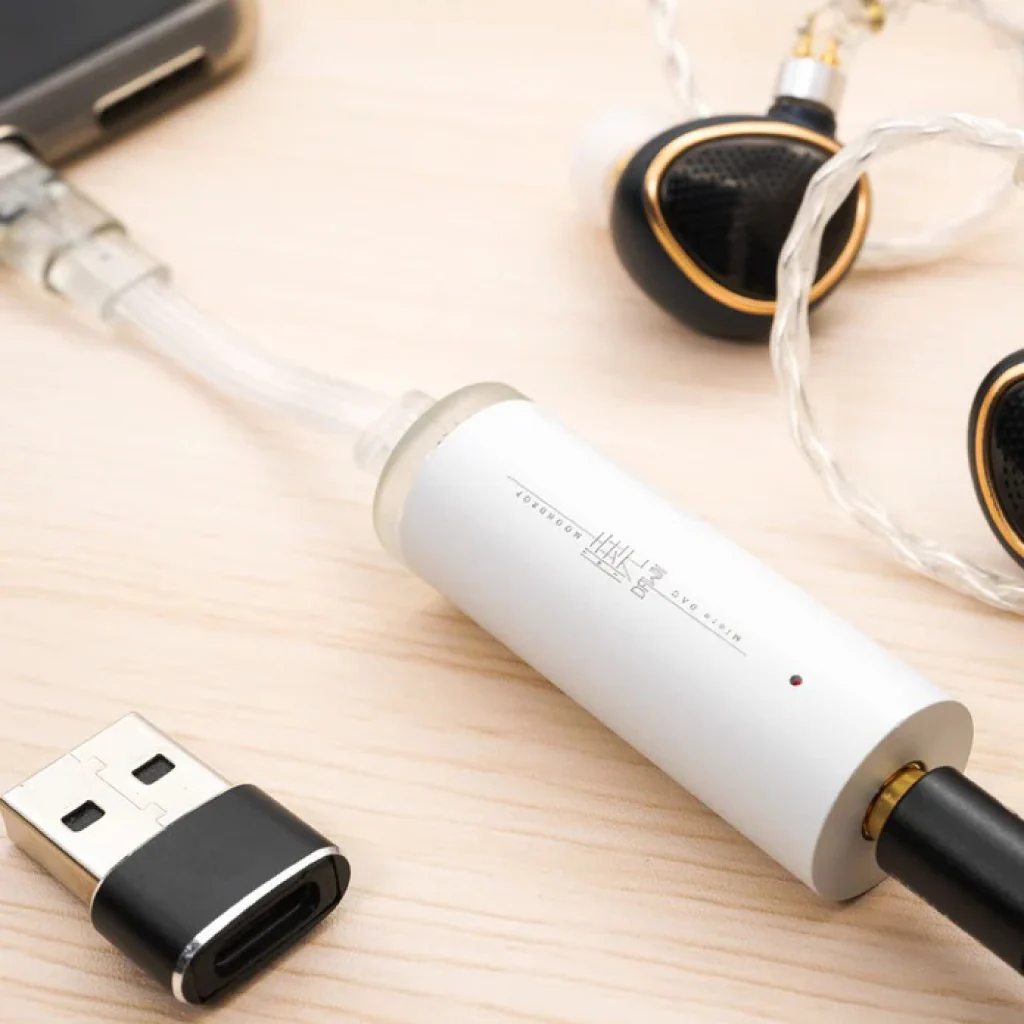

COMPATIBLE WITH MAINSTREAM DEVICES:  Moondrop Dawn has USB Type-C interface and it is compatible with most smartphones, Windows/Mac PCs, and also with apple devices with appropriate adapters.

Note: Adapters need to purchase Seprately.

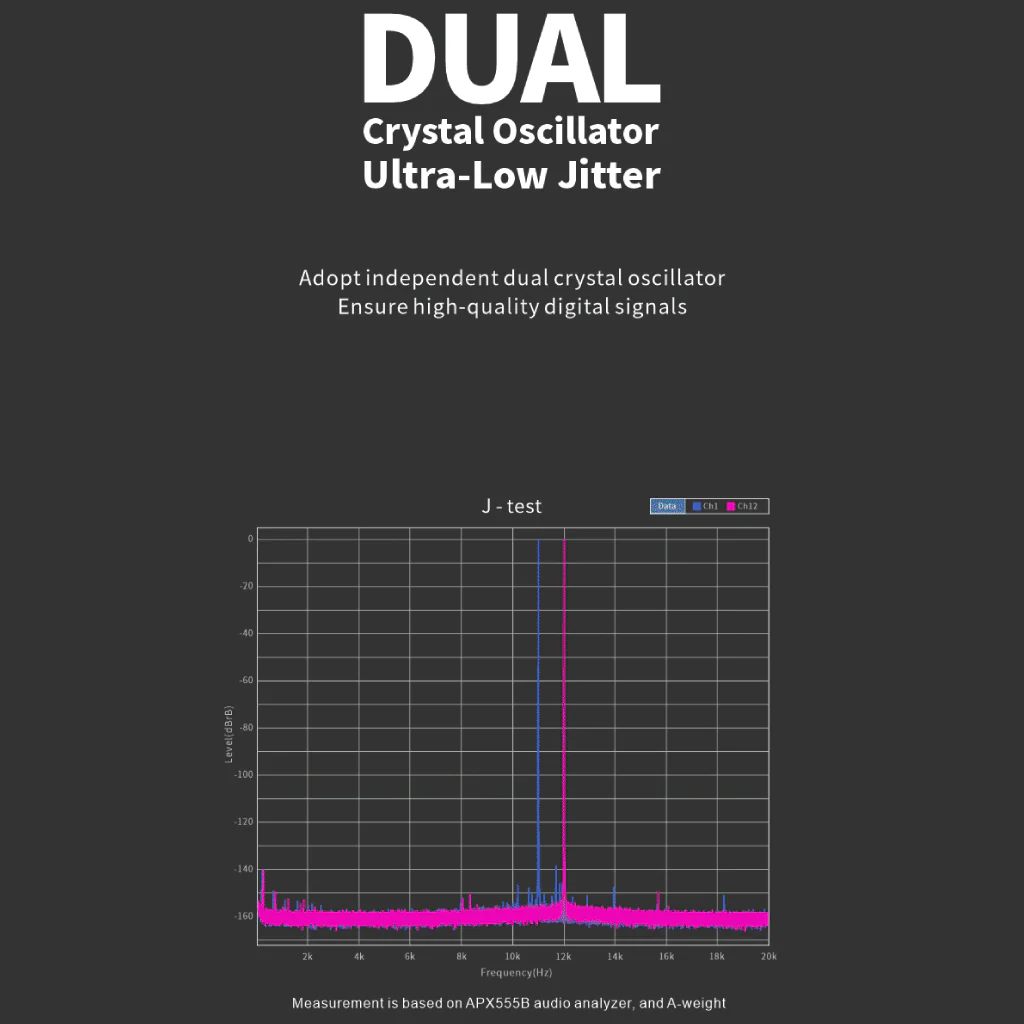

DUAL CRYSTAL OSCILLATOR: Moondrop Dawn adopts independent dual crystal oscillators that ensure high-quality digital signal transmission with ultra-low signal jitter. It packs a truly high-resolution sound experience in its compact form factor.

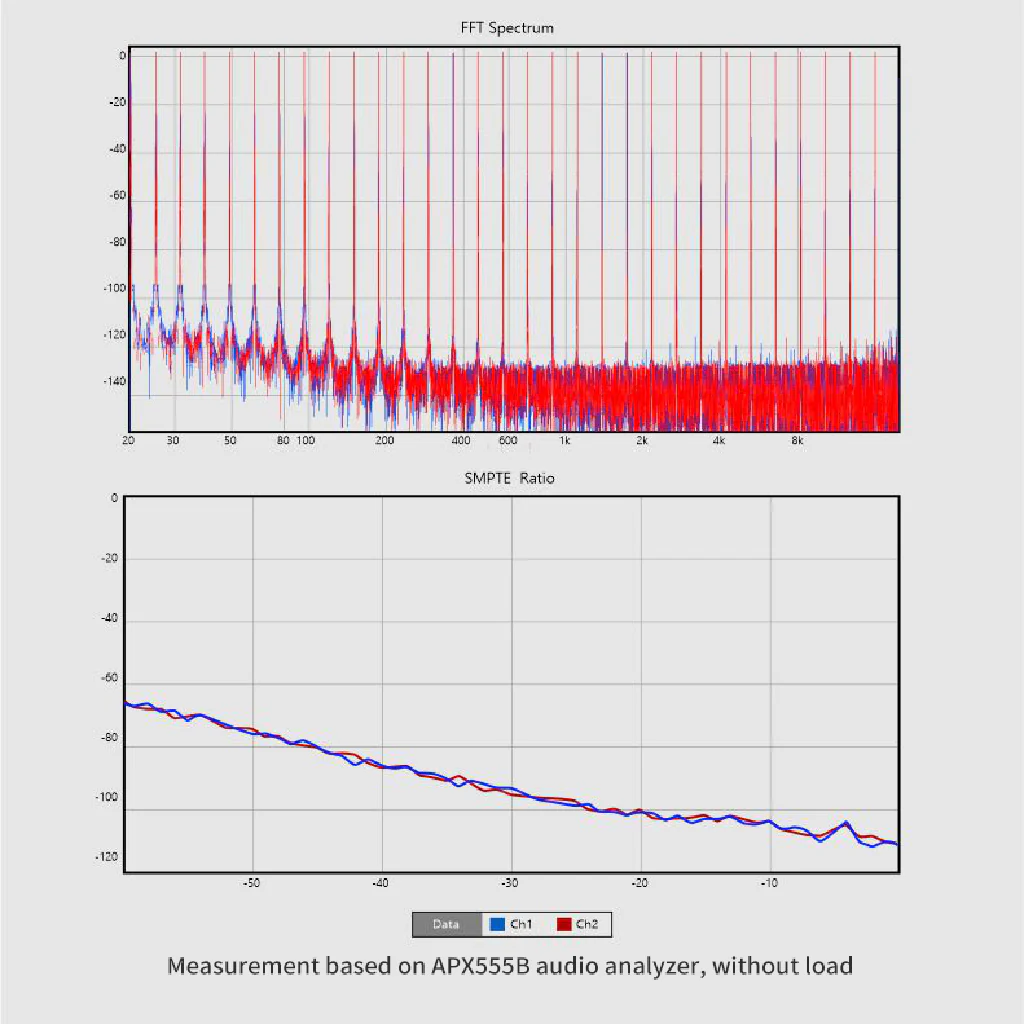

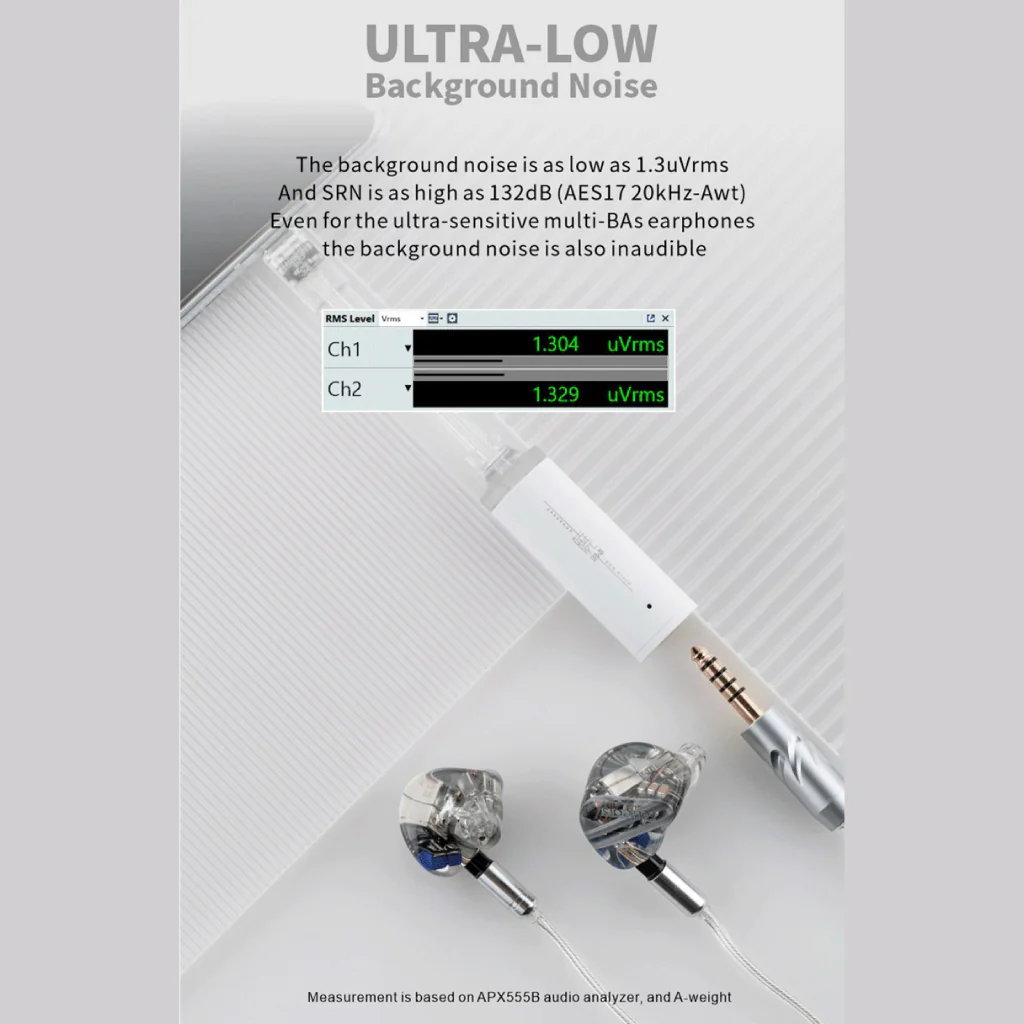

ULTRA LOW BACKGROUND NOISE: High performance fully balanced circuit and high-level hardware configuration. The background noise is as low as 1.3uVrms and SNR is as high as 132 Db (AES17 20Khz-Awt) Even for the ultra-sensitive multi-Bas earphone the background noise is also inaudible.

EASILY CONTROL: Dawn 3.5mm/4.4mm features the excellent multi-tone performance. Bring the restored timbre and detailed sound. Even for the complex large music programs.

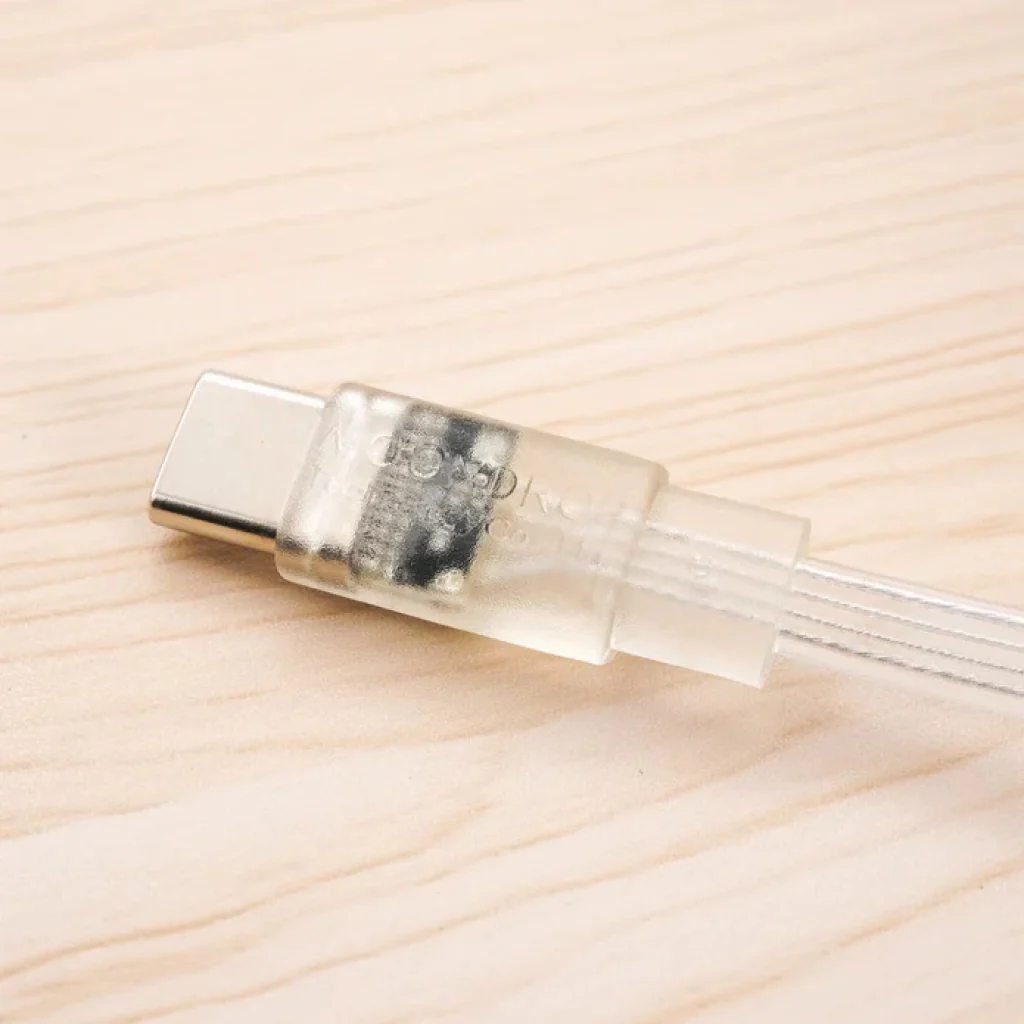

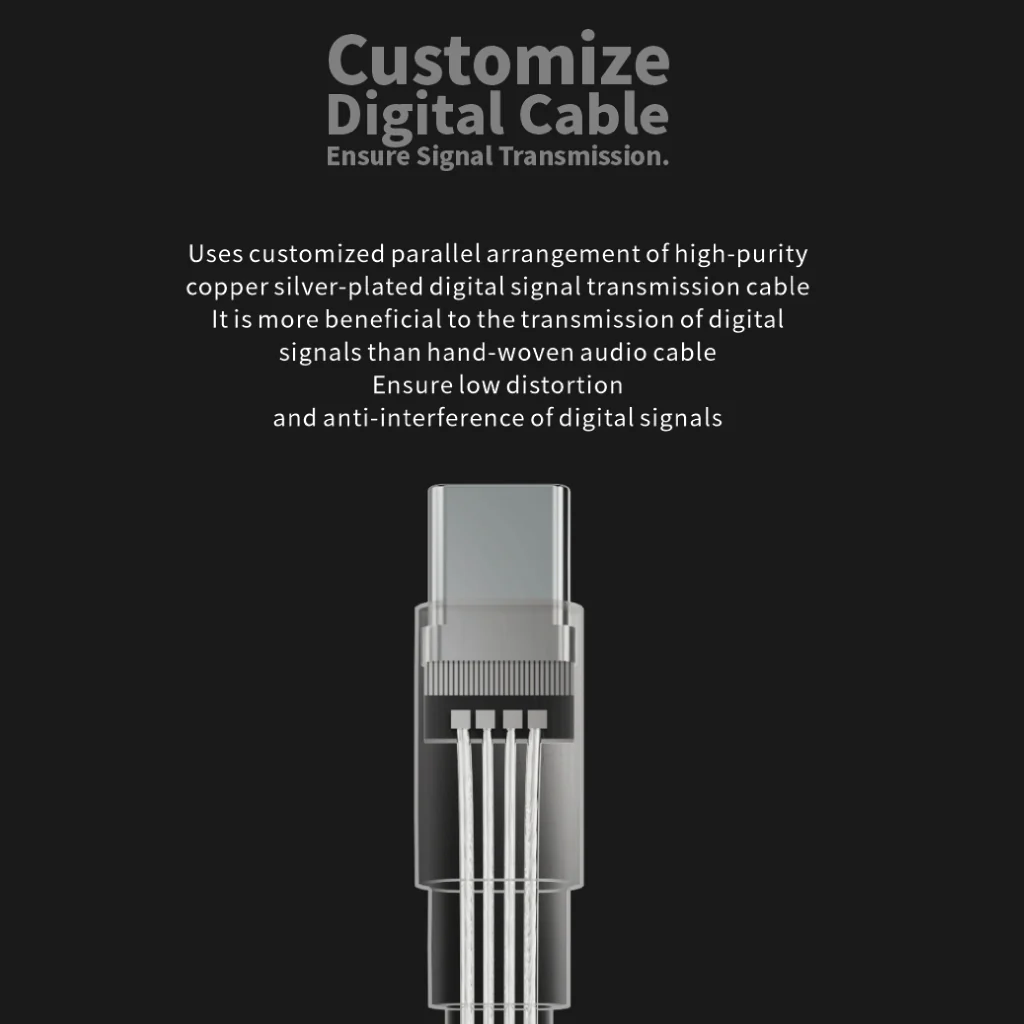

CUSTOMIZE DIGITAL CABLE: DAWN uses customized parallel arrangement of high-purity copper silver-plated digital signal transmission cable. It is more beneficial to the transmission of digital signal than hand – woven audio cable. Ensure Low distortion and anti-interference of digital signals.

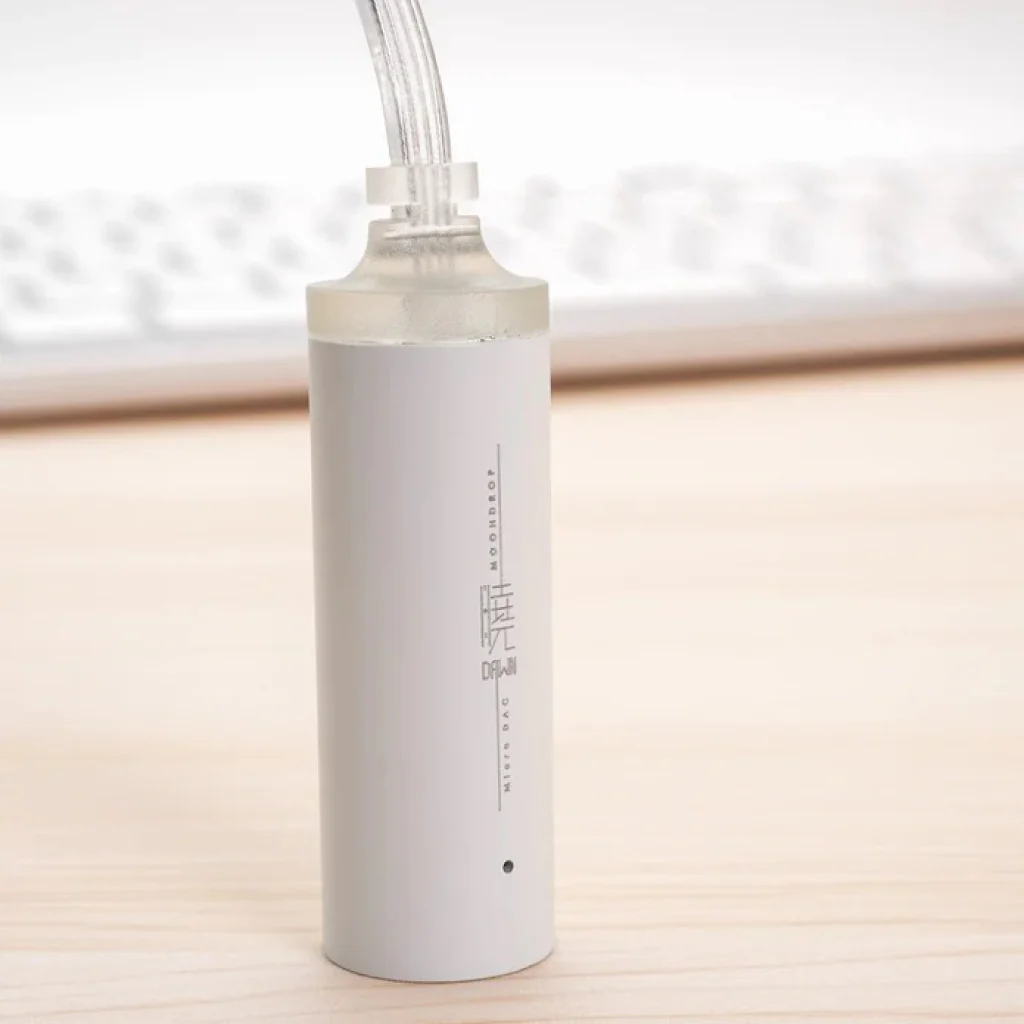

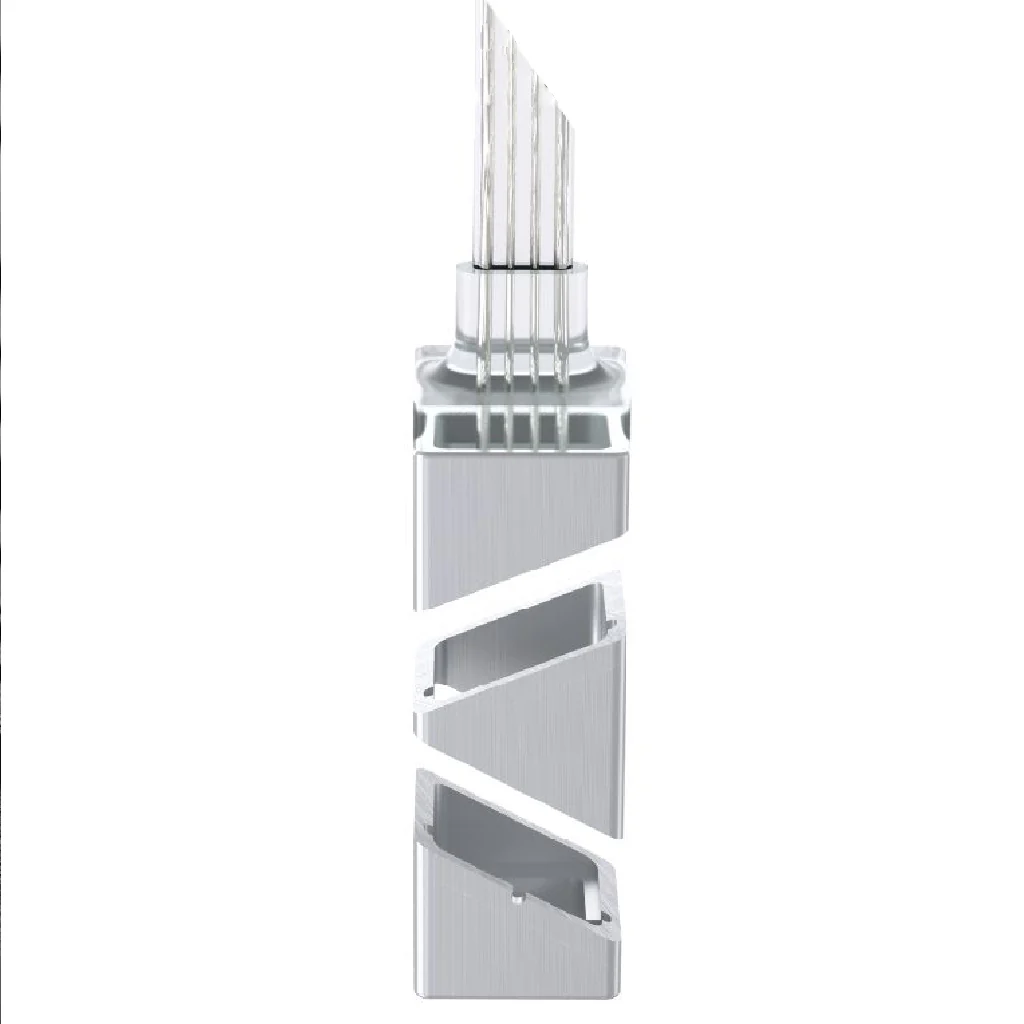

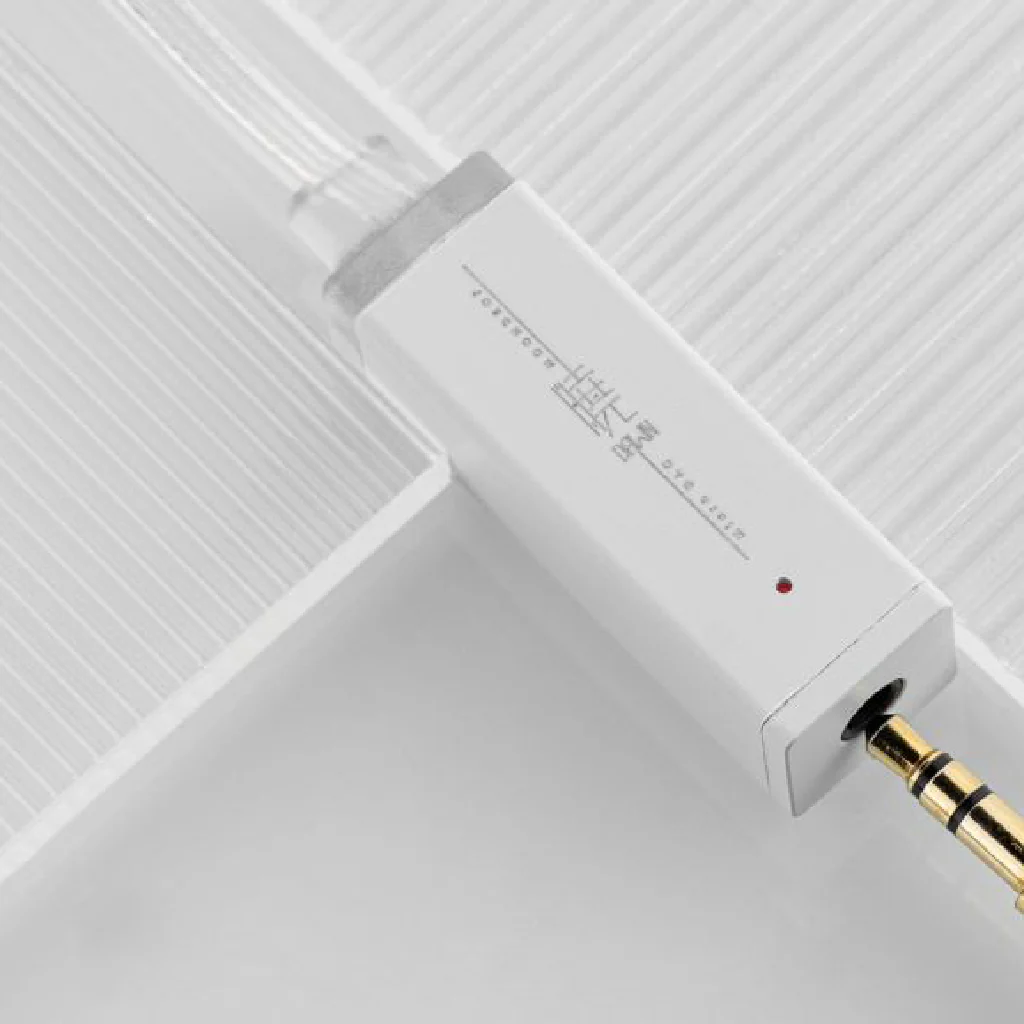

ALUMINUM ALLOY SHELL: DAWN 4.4mm is designed with aviation aluminum alloy CNC Shell. It not only has rigidity but also can shield external electromagnetic interference white matte paint spraying presenting delicate texture.

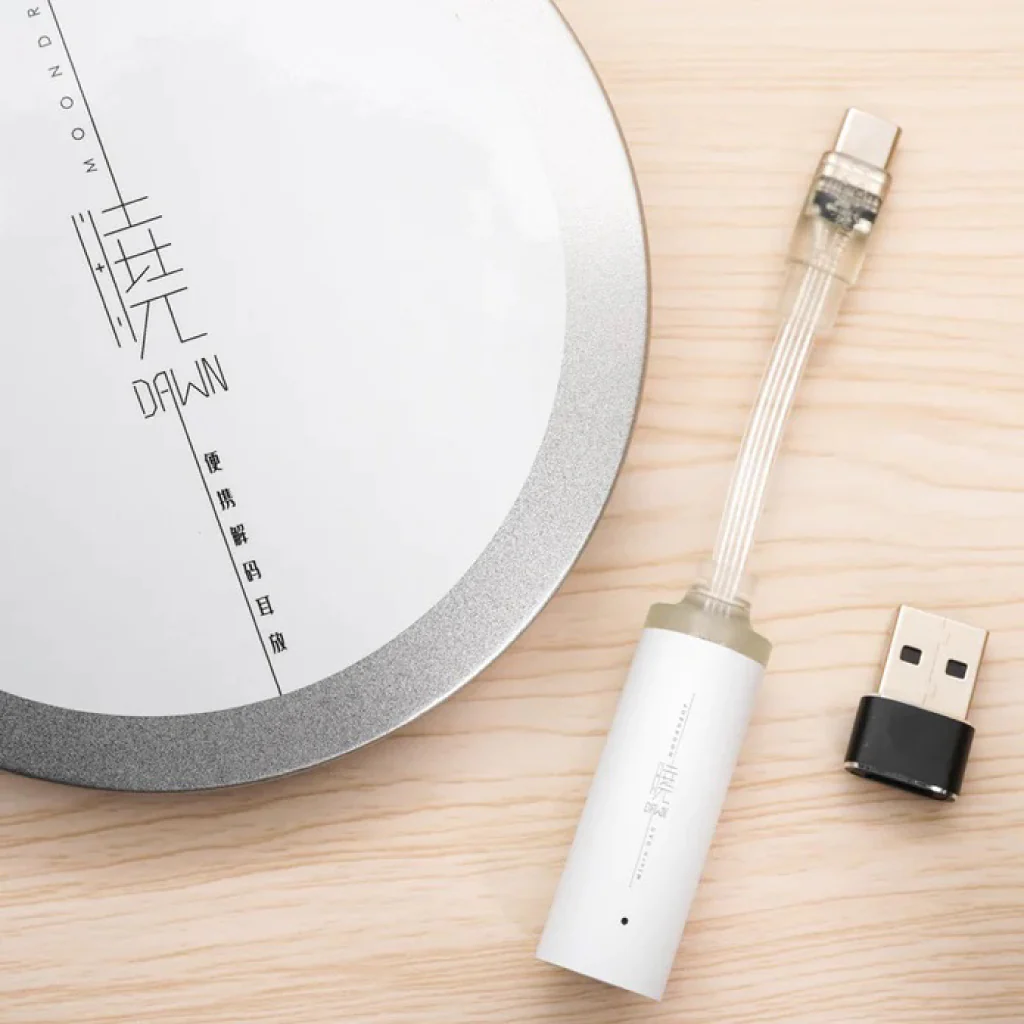

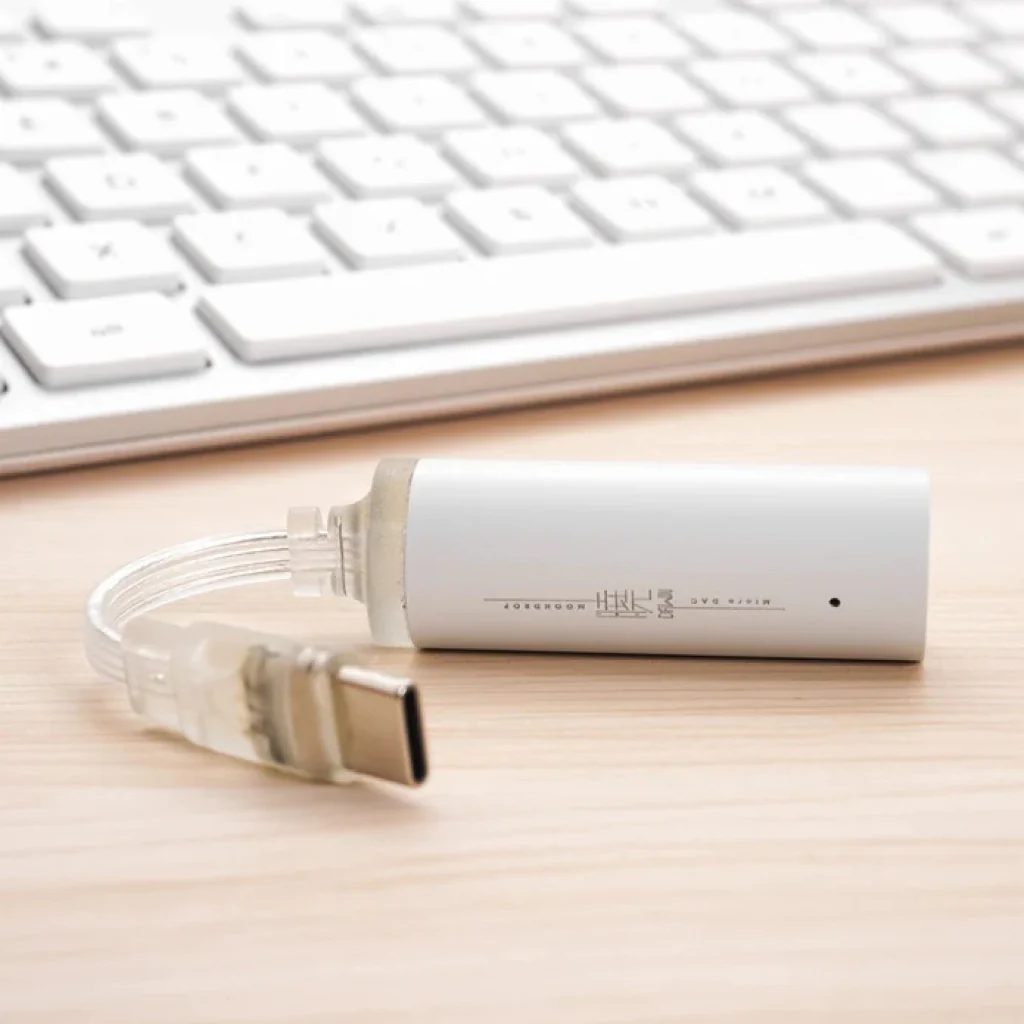

COMPACT AND LIGHTWEIGHT: Dawn is a new DAC/Amp launched by MOONDROP. This DAC is compact in size. The portable and lightweight design makes you more comfortable to use. The stylish design allows you to quickly identify your DAC. Dawn brings clear sound reproduction and delicate interpretation, allowing you to enter the wonderful world of music.

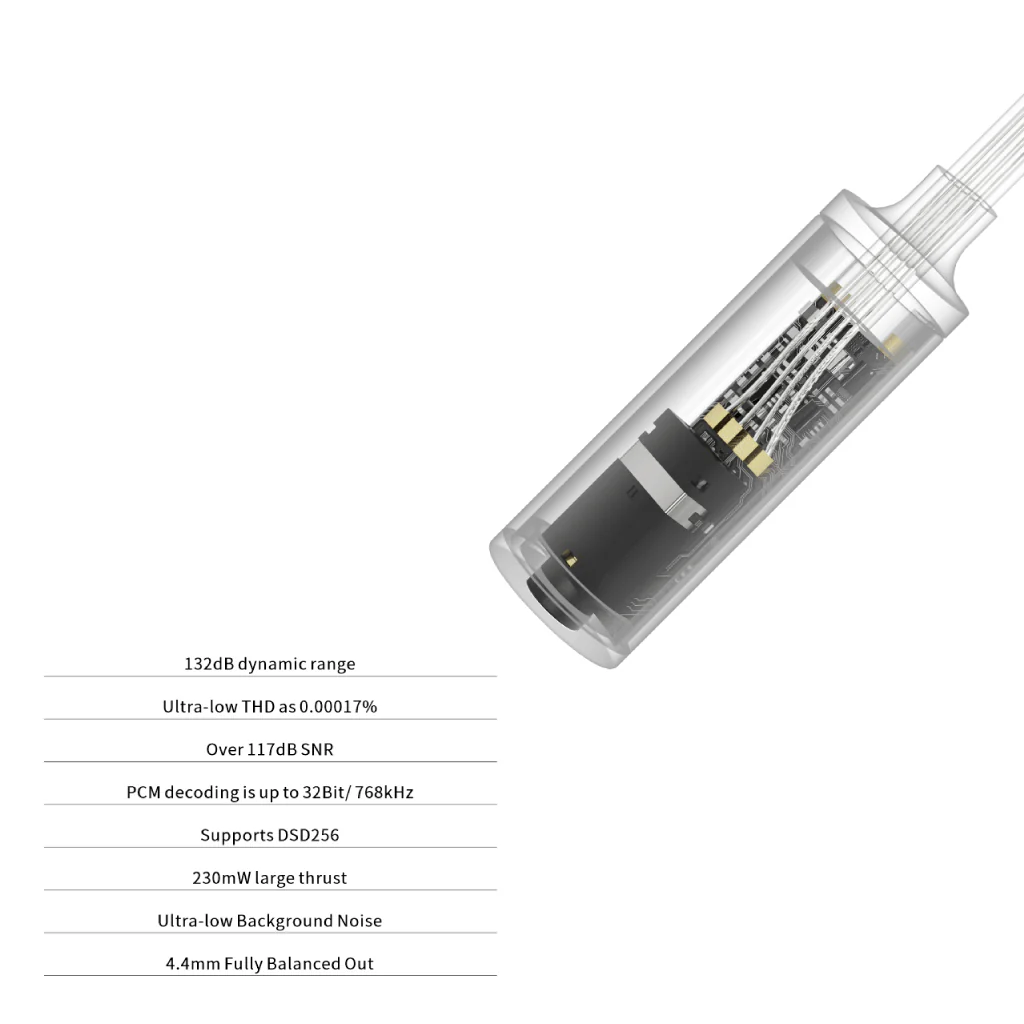

SPECIFICATION:

Brand Name: MOONDROP

Model Name: Dawn

Product Name: MOONDROP Dawn Mini DAC & AMP

Chips: Dual CS43131 DAC CHIPS

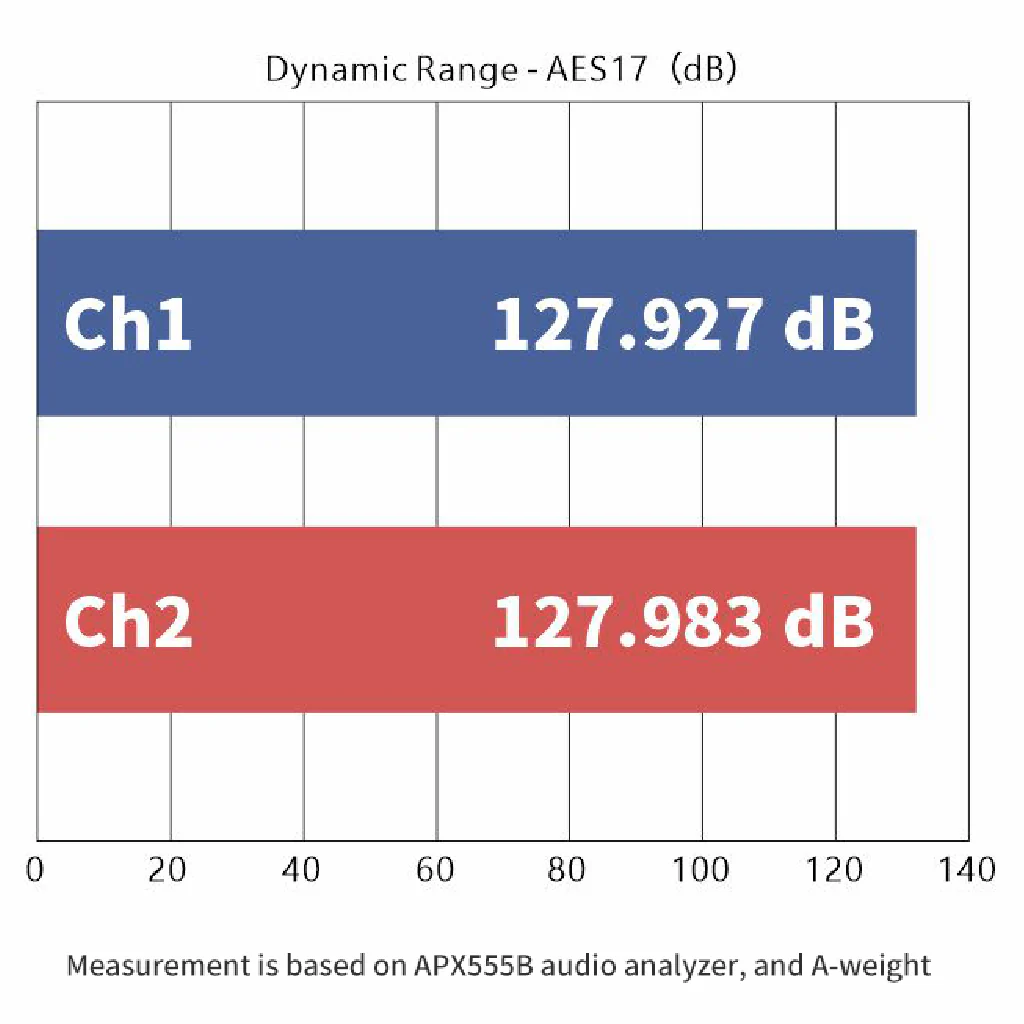

DNR: 132Db

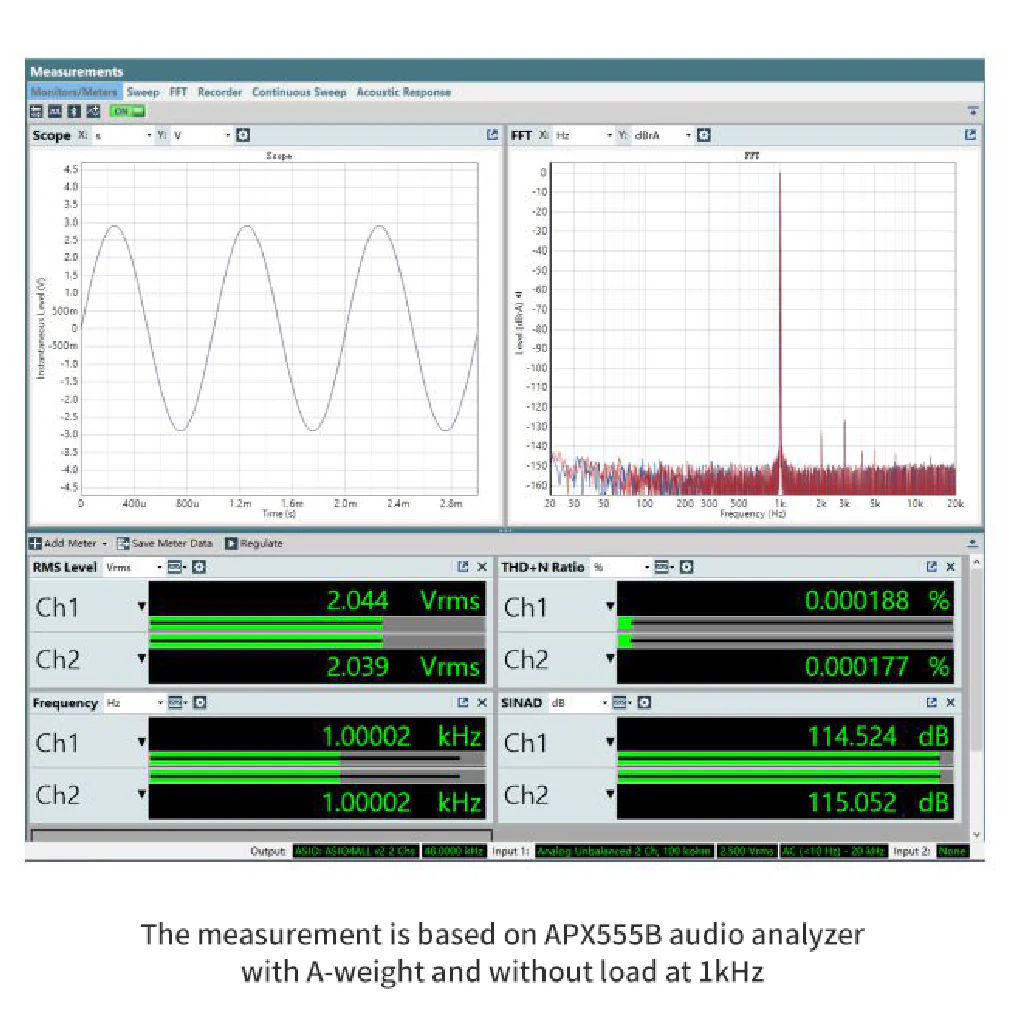

THD+N: 0.00017%

Decoding: PCM up to 32-Bit/768kHz, Native DSD256

Output Power: 230mW@32Ω, 54mW@300Ω

Lineout: 4Vrms (High-Gain), 2Vrms (Low)

Interface: USB Type C

PACKAGE CONTENT:

1x MOONDROP Dawn 3.5MM/4.4MM Mini DAC & AMP
